Clonal Residency Plot — ClonalResidencyPlot • scplotter

Visualizes the sharing (residency) of T-cell or B-cell clones across different samples or metadata groups. Clonal residency analysis reveals how clonotypes are distributed — whether a clone is private to one condition or shared across multiple conditions — which is critical for understanding immune responses, tracking antigen-specific clones, and identifying public vs. private repertoires.

ClonalResidencyPlot supports three visualization modes:

Scatter plot — Compares clone sizes between two groups on log-transformed axes. Points are colored by clonal category: singletons (unique to one group), expanded clones, and dual clones (shared between groups). Correlation statistics are displayed in the subtitle.
Venn diagram — Shows the overlap of clone sets between up to 4 groups. When with_class = TRUE, labels include singlet counts.
UpSet plot — Shows intersection sizes for any number of groups. When with_class = TRUE, clone classes (singlet, expanded) are displayed as separate intersections.

Usage

ClonalResidencyPlot(
  data,
  clone_call = "aa",
  chain = "both",
  plot_type = c("scatter", "venn", "upset"),
  group_by = "Sample",
  group_by_sep = "_",
  groups = NULL,
  facet_by = NULL,
  split_by = NULL,
  split_by_sep = "_",
  scatter_cor = "pearson",
  scatter_size_by = c("max", "total"),
  with_class = TRUE,
  order = NULL,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  ...
)

Arguments

data

The product of scRepertoire::combineTCR(), scRepertoire::combineBCR(), or scRepertoire::combineExpression().

clone_call

How to define a clone. One of "gene", "nt", "aa" (default), "strict", or a custom variable name in the data.

chain

Which chain(s) to use: "both" (default), "TRA", "TRB", "TRD", "TRG", "IGH", or "IGL".

plot_type

The visualization type. One of "scatter" (default), "venn", or "upset".

group_by

Metadata column used to define the groups being compared. Default is "Sample". Multiple columns are concatenated using group_by_sep.

group_by_sep

Separator used when concatenating multiple group_by columns. Default is "_".

groups

The groups to compare. See the The groups parameter section for detailed usage. Default is NULL (all groups).

facet_by

Not supported for ClonalResidencyPlot. Must be NULL.

split_by

Metadata column used to split the data into separate plots. Default is NULL.

split_by_sep

Separator used when concatenating multiple split_by columns. Default is "_".

scatter_cor

Correlation method for scatter plots. One of "pearson" (default), "spearman", or "kendall". Correlation is computed on log-transformed clone sizes of dual (shared) clones.

scatter_size_by

How point sizes are determined in scatter plots.

"max" (default) — Size reflects the larger clone size between the two groups.
"total" — Size reflects the sum of clone sizes across both groups.

with_class

Logical; if TRUE (default), clonal class information (singlet vs. expanded) is included in Venn and UpSet plot labels. Only applicable for "venn" and "upset" plot types.

order

A named list controlling the order of factor levels. List names are column names; list values are the desired order. Default is NULL.

combine

Logical; if TRUE (default), multiple plots are combined into a single layout using plotthis::combine_plots().

nrow

Number of rows in the combined plot layout. Default is NULL (auto-determined).

ncol

Number of columns in the combined plot layout. Default is NULL (auto-determined).

byrow

Logical; if TRUE (default), the combined layout is filled row by row.

...

Additional arguments passed to the underlying plotthis function:

"scatter" — plotthis::ScatterPlot() (palette, palcolor, title, ...)
"venn" — plotthis::VennDiagram() (palette, alpha, ...)
"upset" — plotthis::UpsetPlot() (palette, ...)

Value

A ggplot object, or a list of ggplot objects if combine = FALSE.

Note

Scatter plot group limits: Each scatter plot compares exactly two groups. When more than two groups exist and groups is not specified with ":" notation, all pairwise combinations are generated automatically.

Venn diagram group limits: Venn diagrams support at most 4 groups. For more groups, use plot_type = "upset" instead.

The groups parameter

The groups parameter controls which groups are compared and how they are displayed:

NULL (default): All levels of the group_by column are used. For scatter plots, all pairwise combinations are plotted.
Character vector: Specifies a subset of groups to include. For scatter plots, the specified pairs are plotted individually; use ":" notation for explicit pairings (e.g., c("L:B", "Y:X") compares L vs B and Y vs X).
Named vector/list: The names are used as display labels and the values match groups in the data. For example, c(B = "P17B", L = "P17L") labels groups as "B" and "L". For scatter plots, use c("L:B" = "group1:group2") where the first group in the pair is on the y-axis and the second is on the x-axis.

Examples

# \donttest{
set.seed(8525)
data(contig_list, package = "scRepertoire")
data <- scRepertoire::combineTCR(contig_list,
    samples = c("P17B", "P17L", "P18B", "P18L", "P19B","P19L", "P20B", "P20L"))
data <- scRepertoire::addVariable(data,
    variable.name = "Type",
    variables = factor(rep(c("B", "L", "X", "Y"), 2), levels = c("Y", "B", "L", "X"))
)
data <- scRepertoire::addVariable(data,
    variable.name = "Subject",
    variables = rep(c("P17", "P18", "P19", "P20"), each = 2)
)

ClonalResidencyPlot(data, groups = c("P18B", "P18L"))

ClonalResidencyPlot(data, group_by = "Type", groups = c("L", "B"),
 split_by = "Subject")
#> Warning: [ClonalResidencyPlot] Not both groups 'L, B' is not present in the data for 'P18'. Skipping.
#> Warning: [ClonalResidencyPlot] Not both groups 'L, B' is not present in the data for 'P20'. Skipping.

ClonalResidencyPlot(data, group_by = "Type", groups = c("L:B", "Y:X"),
 split_by = "Subject")
#> Warning: [ClonalResidencyPlot] Not both groups 'Y, X' is not present in the data for 'P17'. Skipping.
#> Warning: [ClonalResidencyPlot] Not both groups 'L, B' is not present in the data for 'P18'. Skipping.
#> Warning: [ClonalResidencyPlot] Not both groups 'Y, X' is not present in the data for 'P19'. Skipping.
#> Warning: [ClonalResidencyPlot] Not both groups 'L, B' is not present in the data for 'P20'. Skipping.

ClonalResidencyPlot(data, plot_type = "venn", groups = c("B", "L"),
 group_by = "Type", split_by = "Subject")

ClonalResidencyPlot(data, groups = c("P17_B", "P17_L", "P18_X", "P18_Y"),
   plot_type = "venn", with_class = TRUE, palette = "Blues",
   group_by = c("Subject", "Type"))
#> Multiple columns are provided in 'group_by'. They will be concatenated into one column.
#> Warning: Unknown or uninitialised column: `.split`.

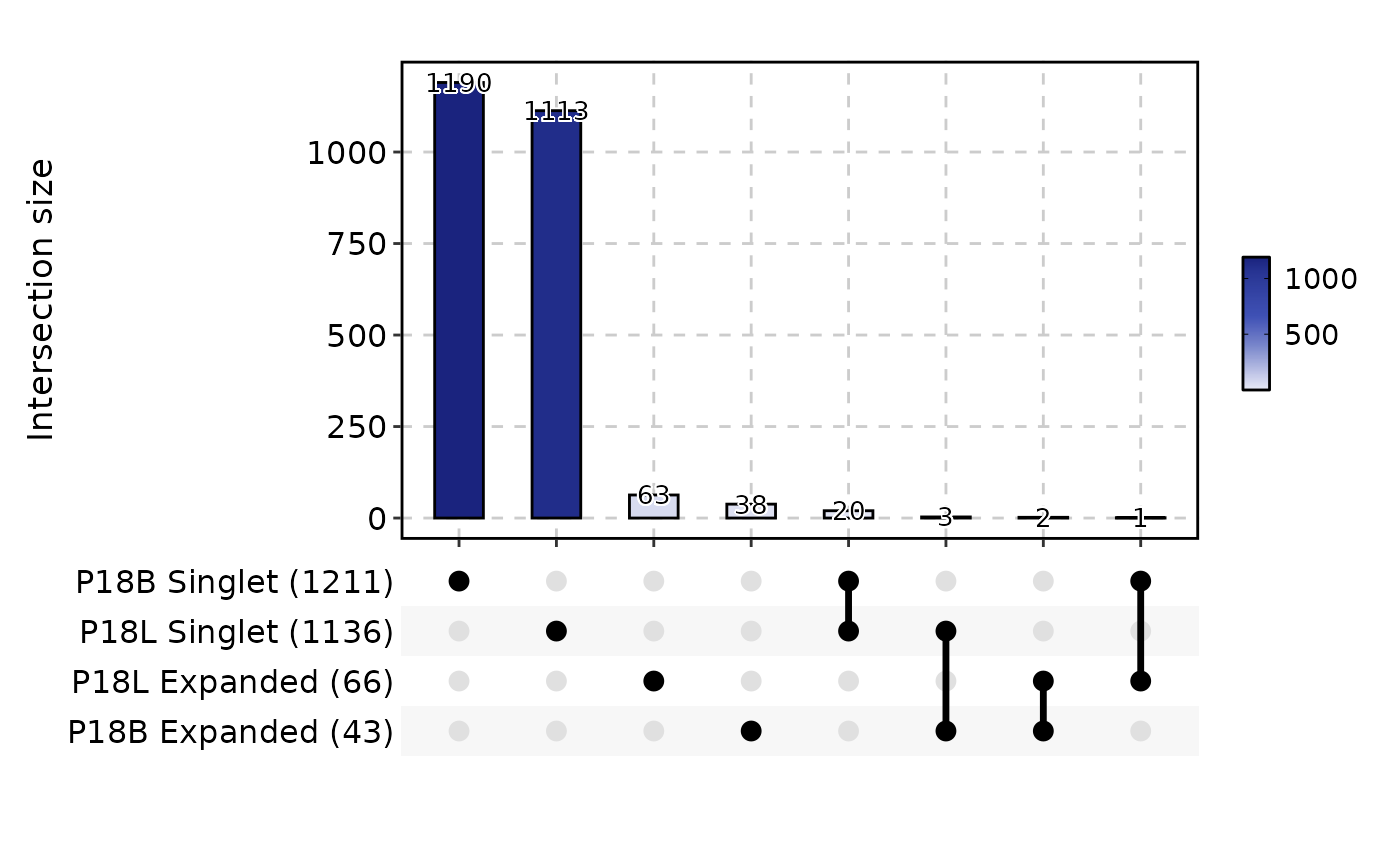

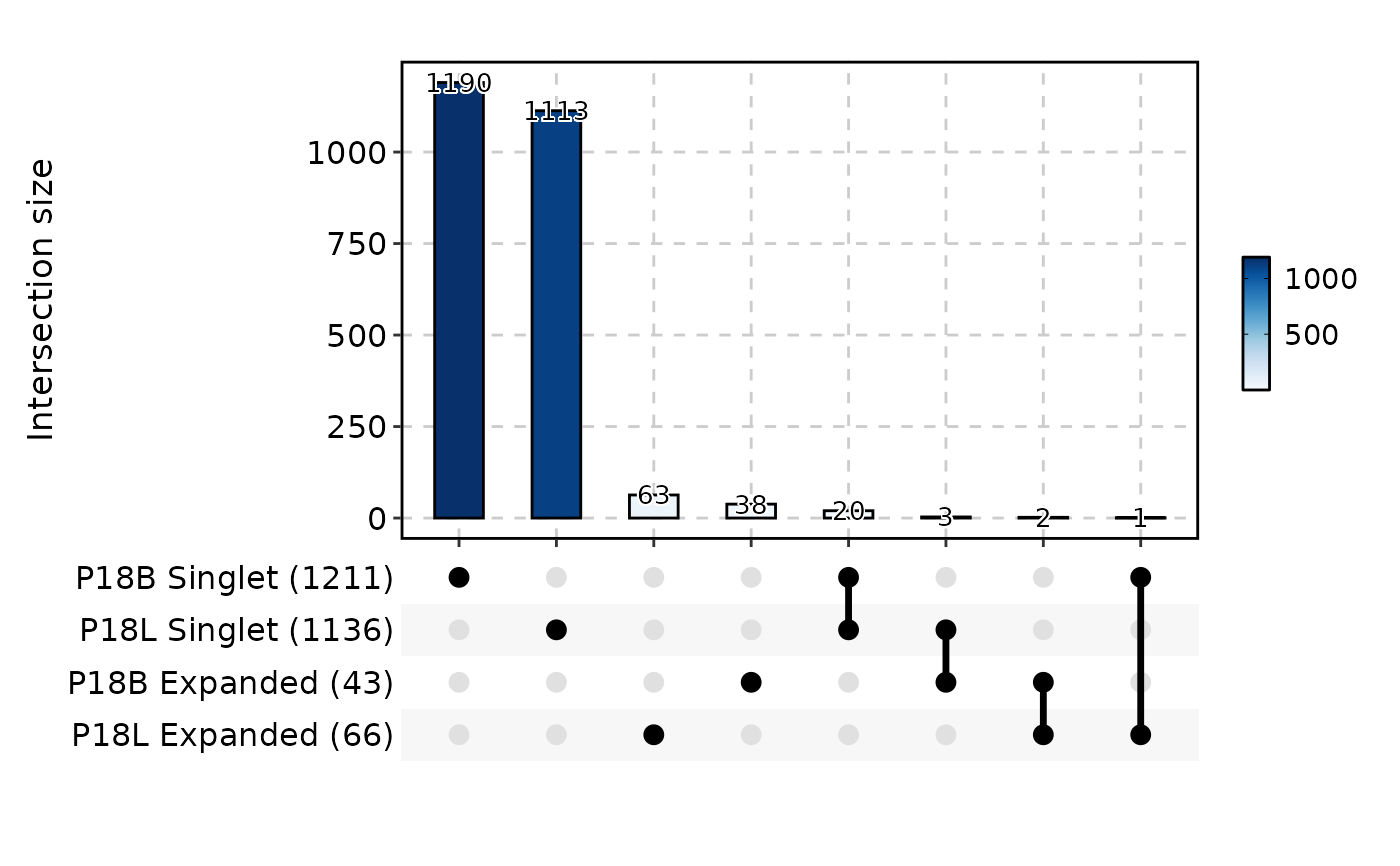

ClonalResidencyPlot(data, plot_type = "upset", groups = c("P18B", "P18L"))

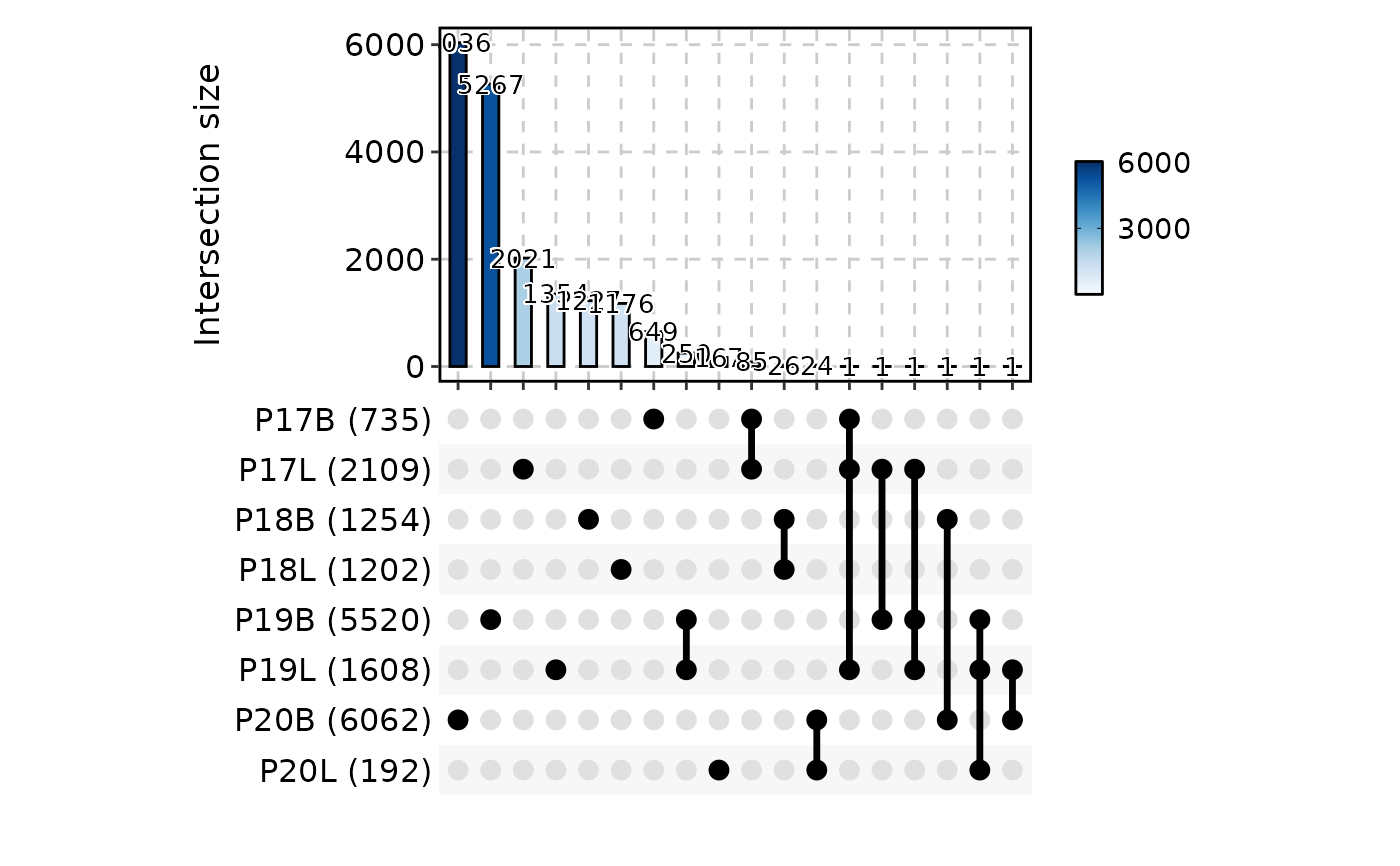

ClonalResidencyPlot(data, plot_type = "upset", with_class = FALSE)

# }
