Venn / Euler diagram

Source: R/venndiagram.R
VennDiagram.Rd

Draws Venn or Euler diagrams that visualise the overlap relationships among multiple sets. Supports four input formats: long (one row per element-set pair), wide (logical/0-1 columns per set), a named list (element vectors per set), and a pre-computed VennPlotData object.

Intersection regions can be filled by a continuous colour gradient encoding the element count (fill_mode = "count" / "count_rev") or by blended set colours (fill_mode = "set"). Region labels can display counts, percentages, both, or a custom function. Set labels always show the set name and its total element count.

Use split_by to produce separate Venn diagrams for each level of a grouping variable. Note that split_by is only supported when data is a data frame (list and VennPlotData inputs cannot be split).

Usage

VennDiagram(
  data,
  in_form = c("auto", "long", "wide", "list", "venn"),
  split_by = NULL,
  split_by_sep = "_",
  group_by = NULL,
  group_by_sep = "_",
  id_by = NULL,
  label = "count",
  label_fg = "black",
  label_size = NULL,
  label_bg = "white",
  label_bg_r = 0.1,
  fill_mode = "count",
  palreverse = FALSE,
  fill_name = NULL,
  palette = ifelse(fill_mode == "set", "Paired", "Blues"),
  palcolor = NULL,
  alpha = 1,
  theme = "theme_this",
  theme_args = list(),
  title = NULL,
  subtitle = NULL,
  legend.position = "right",
  legend.direction = "vertical",
  aspect.ratio = 1,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data

A data frame.

in_form

A character string specifying the input format. One of "auto" (default; detect automatically via detect_venn_datatype()), "long", "wide", "list", or "venn".

split_by

The column(s) to split the data by and produce separate Venn diagrams per subgroup. Only supported when data is a data frame. Multiple columns are concatenated with split_by_sep.

split_by_sep

A character string to separate concatenated split_by columns. Default "_".

group_by

Columns to group the data for plotting For those plotting functions that do not support multiple groups, They will be concatenated into one column, using group_by_sep as the separator

group_by_sep

The separator for multiple group_by columns. See group_by

id_by

A character string specifying the column name that identifies individual elements. Required for long-format data; ignored otherwise.

label

A character string or function controlling the text shown in each intersection region. One of:

  • "count" (default) — the raw count of elements in that region.

  • "percent" — the percentage of the total element count.

  • "both" — count and percentage on separate lines.

  • "none" — no region labels are drawn.

  • A function — receives a data frame with columns "id", "X", "Y", "name", "item", and "count", and must return a character vector of labels.

label_fg

A character string specifying the colour of the label text.

label_size

A numeric value specifying the font size of the label text. When NULL (the default), auto-sized at 3.5 for region labels and 4 for set labels, scaled by base_size / 12.

label_bg

A character string specifying the background colour of the label text (passed to geom_text_repel() as bg.color). Default "white".

label_bg_r

A numeric value specifying the corner radius of the label background rectangle (passed as bg.r). Default 0.1.

fill_mode

A character string specifying how intersection regions are coloured. One of:

  • "count" — continuous gradient based on element count (default palette: "Spectral").

  • "count_rev" — continuous gradient with reversed count order.

  • "set" — discrete blended colours per set combination (default palette: "Paired"). No legend is drawn.

palreverse

A logical value indicating whether to reverse the palette. Default is FALSE.

fill_name

A character string for the colour bar legend title when fill_mode is "count" or "count_rev". Ignored when fill_mode = "set".

palette

A character string specifying the palette to use. A named list or vector can be used to specify the palettes for different split_by values.

palcolor

A character string specifying the color to use in the palette. A named list can be used to specify the colors for different split_by values. If some values are missing, the values from the palette will be used (palcolor will be NULL for those values).

alpha

A numeric value specifying the transparency of the plot.

theme

A character string or a theme class (i.e. ggplot2::theme_classic) specifying the theme to use. Default is "theme_this".

theme_args

A list of arguments to pass to the theme function.

title

A character string specifying the title of the plot. A function can be used to generate the title based on the default title. This is useful when split_by is used and the title needs to be dynamic.

subtitle

A character string specifying the subtitle of the plot.

legend.position

A character string specifying the position of the legend. if waiver(), for single groups, the legend will be "none", otherwise "right".

legend.direction

A character string specifying the direction of the legend.

aspect.ratio

A numeric value specifying the aspect ratio of the plot.

combine

Logical; when TRUE (default), returns a combined patchwork object. When FALSE, returns a named list of individual ggplot objects.

ncol, nrow

Integer number of columns / rows for the combined layout when combine = TRUE.

byrow

Logical; fill the combined layout by row (default TRUE).

seed

A numeric seed for reproducibility. Default 8525.

axes, axis_titles

Character strings specifying how axes and axis titles are handled across the combined layout.

guides

A character string specifying how legends are collected across panels in the combined layout.

design

A custom layout specification for the combined plot. Passed to wrap_plots().

...

Additional arguments.

Value

A ggplot object (single split), a patchwork object (combined sub-plots), or a named list of ggplot objects (when combine = FALSE), each with height and width attributes in inches.

split_by Workflow

When a non-NULL split_by is provided and the input is a data frame:

  1. Validation — an error is raised if data is not a data frame (list and VennPlotData input cannot be split).

  2. Column resolution — split_by is validated and optionally concatenated via check_columns() with force_factor = TRUE and allow_multi = TRUE.

  3. Data splitting — the data frame is split by the unique levels of the split_by column, preserving factor level order. Empty levels are dropped via droplevels().

  4. Per-split colour and legend resolution — check_palette(), check_palcolor(), and check_legend() resolve per-split palettes, custom colours, legend positions, and legend directions.

  5. Atomic dispatch — VennDiagramAtomic() is called for each subset. When title is a function, it receives the split level name for dynamic title generation.

  6. Combination — results are passed to combine_plots() which returns a combined patchwork object (when combine = TRUE) or a named list of individual ggplot objects (when combine = FALSE).

Examples

# \donttest{
set.seed(8525)
data <- list(
    A = sort(sample(letters, 8)),
    B = sort(sample(letters, 8)),
    C = sort(sample(letters, 8)),
    D = sort(sample(letters, 8))
)

# Basic Venn diagram with count labels
VennDiagram(data)

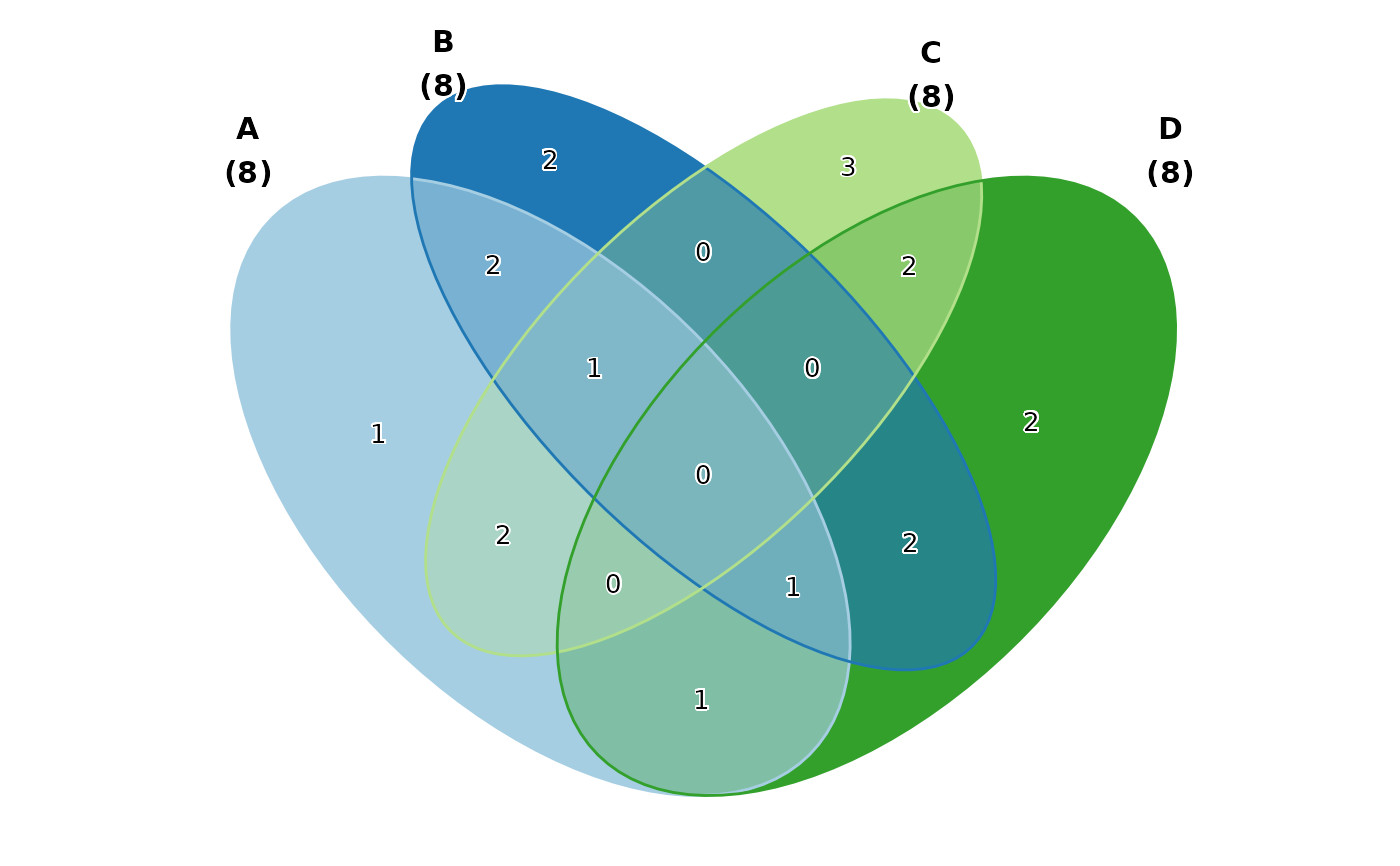

# Fill by set membership (blended colours)
VennDiagram(data, fill_mode = "set")

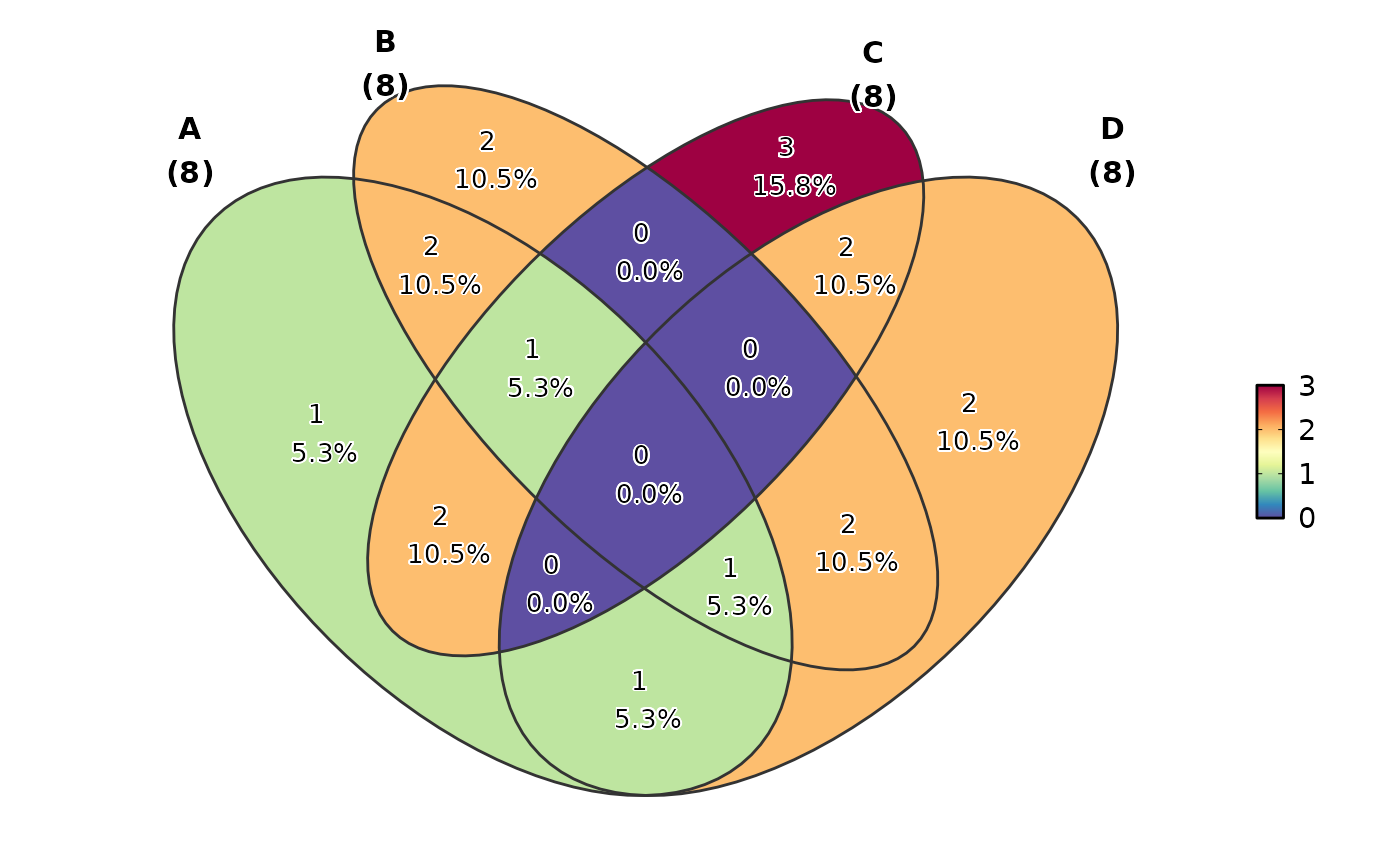

# Show both count and percentage
VennDiagram(data, label = "both")


# Custom label function using set names
VennDiagram(data, label = function(df) df$name)

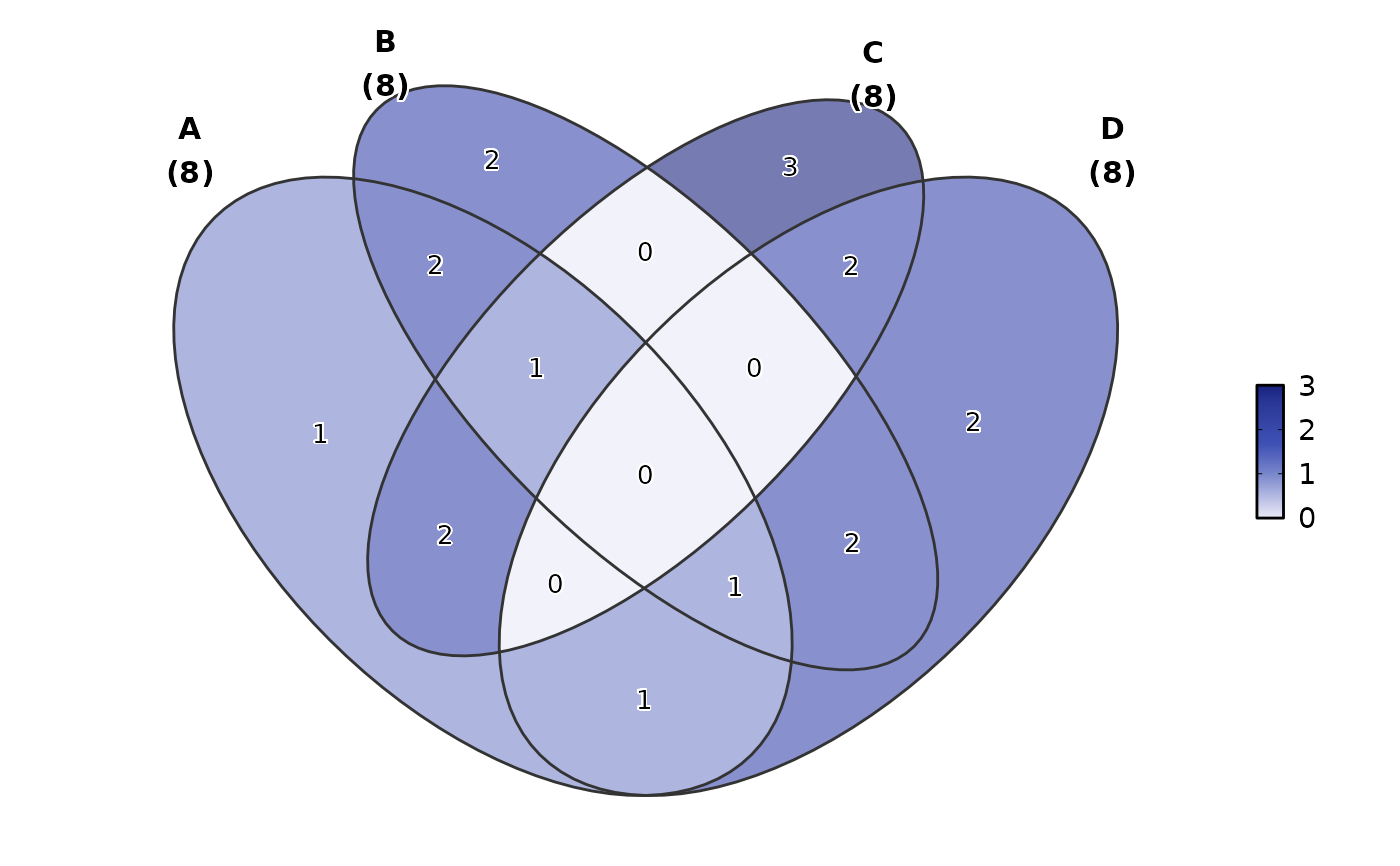

# Custom palette and transparency
VennDiagram(data, palette = "material-indigo", alpha = 0.6)

# }
