Basic Design Of The Plots

Color palettes

Available color palettes

The package provides a set of color palettes that are widely used. They are from different packages or used in different tools, including:

• viridis from the viridis package
• brewer.pal.info from the RColorBrewer package
• ggsci_db from the ggsci package
• redmonder.pal.info from the Redmonder package
• metacartocolors from the rcartocolor package
• nord_palettes from the nord package
• The ocean palettes of syspals from the pals package
• colorschemes from the dichromat package
• Some custom palettes including those from jcolors package

All the above palettes are provided by the SCP package. In addition, the SCP package also provides a set of color palettes that are widely used in single-cell analysis, including:

• The discrete colour palettes DiscretePalette from the Seurat package
• scales::hue_pal used by Seurat

See also the following documentation for more details:

• all available color palettes
• show_palettes
• palette_this

Using palette and palcolor arguments to control the colors in the plots

Most plotting functions in plotthis support two arguments to control colors: palette and palcolor. These arguments provide flexible color customization while maintaining consistency with predefined palettes.

The palette argument

The palette argument specifies which predefined color palette to use. You can view all available palettes with show_palettes(). For example:

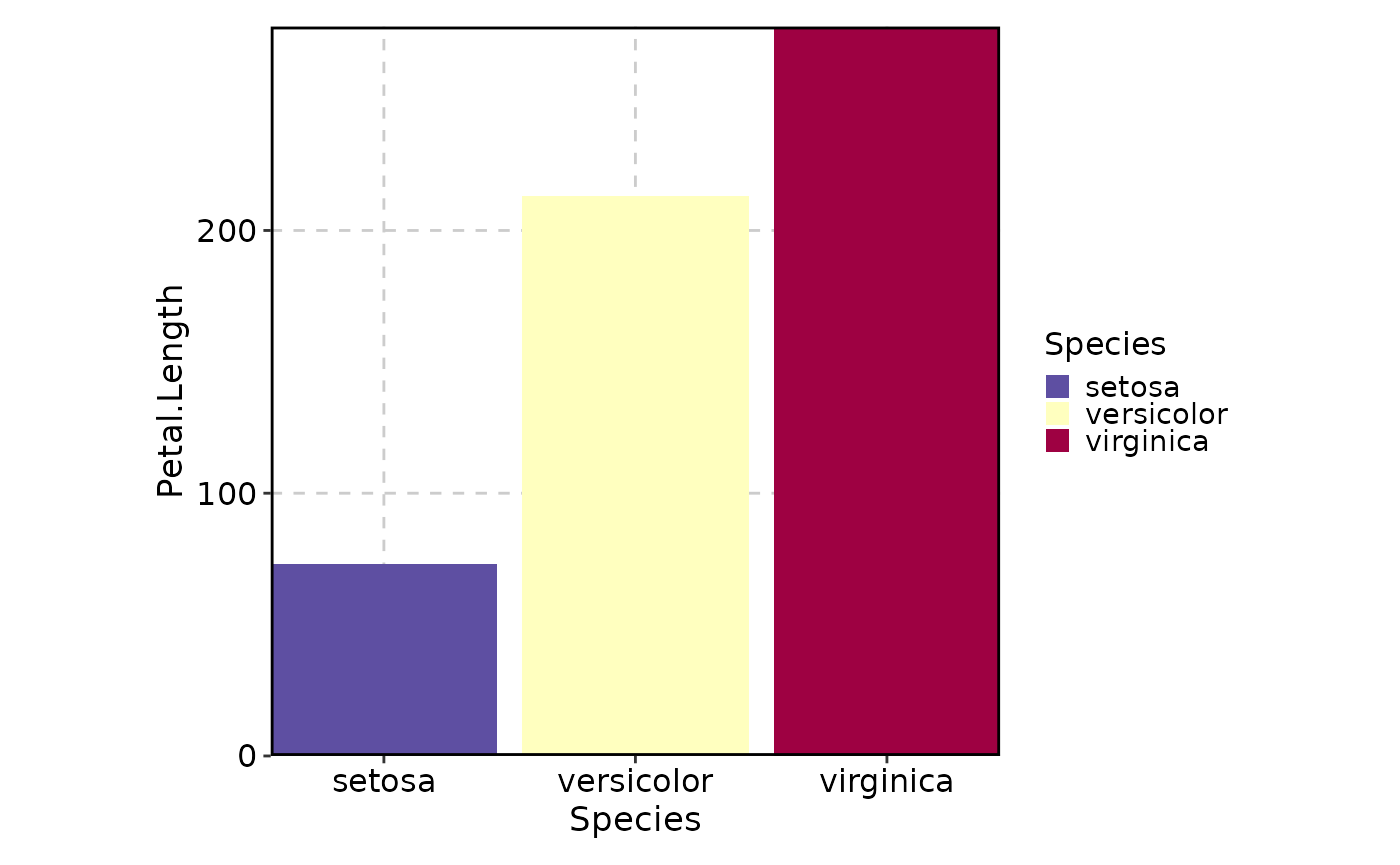

# Use the "Spectral" palette
BarPlot(data = iris, x = "Species", y = "Petal.Length", palette = "Spectral")

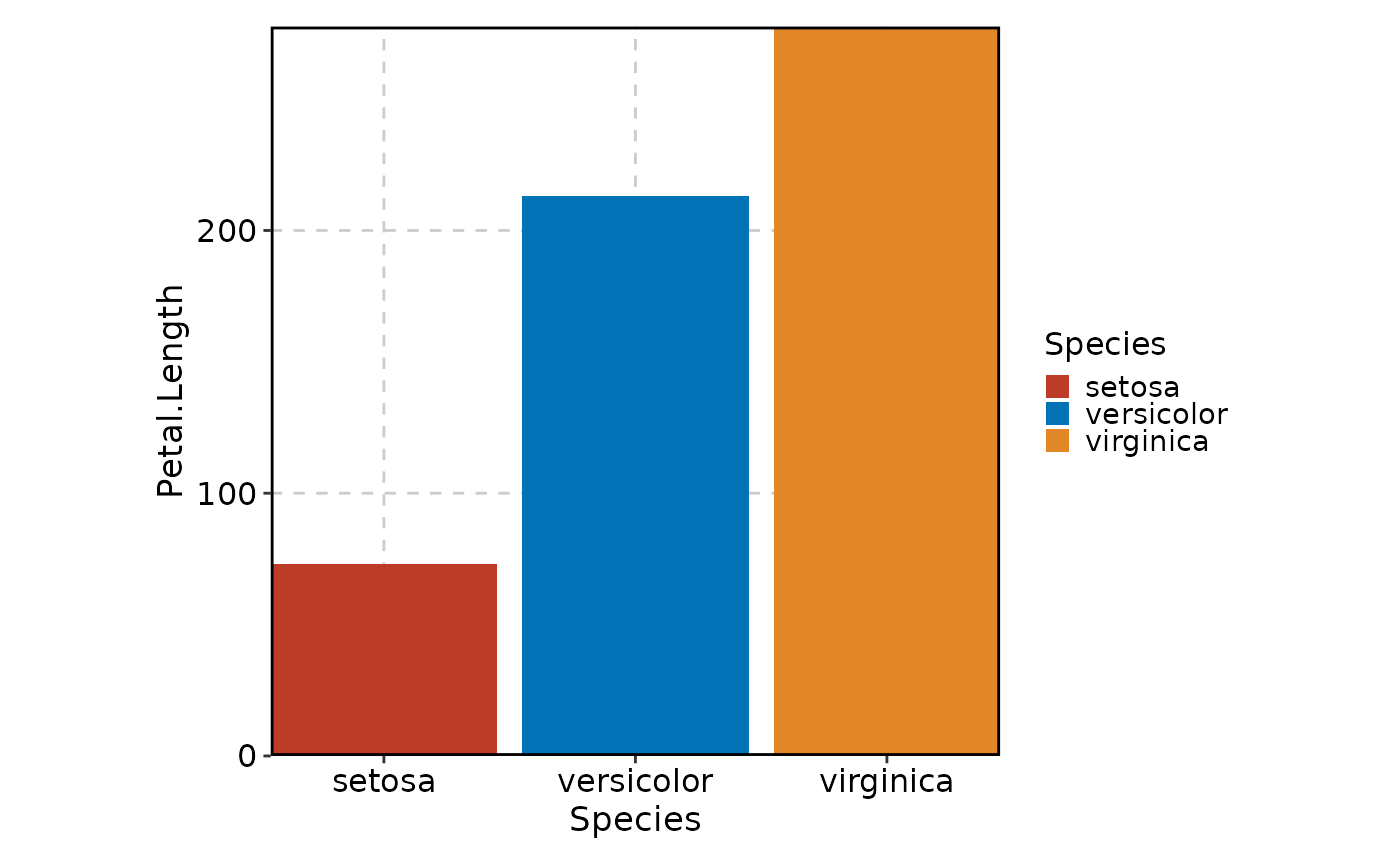

# Use the "nejm" palette from ggsci
BarPlot(data = iris, x = "Species", y = "Petal.Length", palette = "nejm")

The palette serves as the foundation for color generation. Colors are automatically assigned based on the number of categories or the range of continuous values in your data.

The palcolor argument

The palcolor argument allows you to override specific colors from the palette. The behavior differs for discrete and continuous color scales:

For discrete colors (categorical data)

Use a named vector where names correspond to categories in your data. The function will use the palette as the base and replace only the specified colors:

# Replace specific category colors
BarPlot(
    data = iris,
    x = "Species",
    y = "Petal.Length",
    palette = "Paired",
    palcolor = c("setosa" = "red", "versicolor" = "blue")
)

# "virginica" will still use the color from the "Paired" palette

For continuous colors (numeric data)

Use a positional vector where NA values indicate positions to keep from the palette, and non-NA values replace specific positions. The replacement happens evenly distributed across the base palette colors:

data(dim_example)

FeatureDimPlot(
    data = dim_example,
    features = "stochasticbasis_1",
    palette = "Spectral",
    # With 5 colors and 11 palette colors, positions are chosen evenly:
    #   round(seq(1, 11, length.out = 5)) = c(1, 4, 6, 9, 11)
    # Colors at positions 1, 4, 9, 11 are replaced (position 6 is NA, so kept):
    #   "red"       "#3288BD"   "#66C2A5"
    #   "pink"      "#E6F598"   "#FFFFBF"
    #   "#FEE08B"   "#FDAE61"   "lightblue"
    #   "#D53E4F"   "blue"
    palcolor = c("red", "pink", NA, "lightblue", "blue")
)

The positions are calculated evenly across the palette, so: - With 2 values in palcolor: replaces first and last colors - With 3 values: replaces first, middle, and last colors - With NA values: keeps the original palette color at that position

Customizing NA colors

You can specify the color for NA values using the "NA" key in palcolor:

data <- data.frame(x = c("A", NA, "B", "C"), y = c(1, 2, 3, 4))

BarPlot(
    data = data,
    x = "x", y = "y",
    palette = "Paired",
    palcolor = c("A" = "red", "NA" = "orange"),
    # NA values by default will be dropped
    keep_na = TRUE
)

Complete example

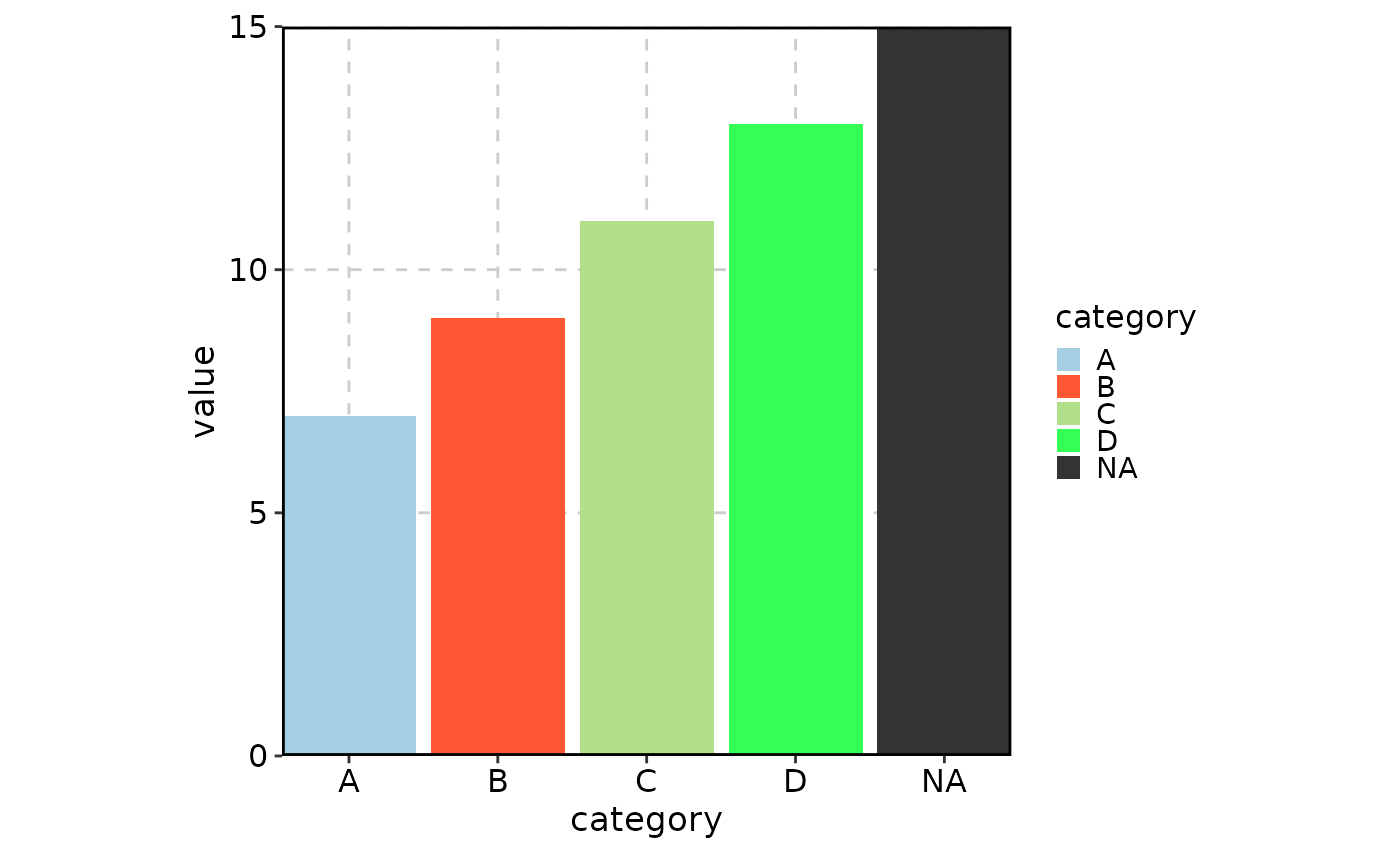

Here’s a comprehensive example showing how palette and palcolor work together:

data <- data.frame(
    category = c("A", "B", "C", "D", NA, "A", "B", "C", "D", NA),
    value = c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
)

BarPlot(
    data = data,
    x = "category",
    y = "value",
    palette = "Paired",                    # Base palette
    # "A" and "C" will use colors from the "Paired" palette
    palcolor = c(                          # Override specific colors
        "B" = "#FF5733",                   # Custom color for "B"
        "D" = "#33FF57",                   # Custom color for "D"
        "NA" = "#333333"                   # Custom color for NA values
    ),
    keep_na = TRUE                        # Keep NA values in the plot
)

This design gives you fine-grained control over your plot colors while maintaining the convenience of predefined palettes.

Basic implementation of the plotting functions

Nearly every plotting function in plotthis follows a three-layer pattern:

1. *Atomic() (internal) — Core implementation. Takes a single data frame and returns a ggplot object. Handles faceting via facet_plot(). Does NOT handle split_by or combine.

2. *Plot() (exported) — The public API. Handles split_by (splitting data by a column, processing keep_na/keep_empty, dispatching per split to *Atomic(), then combining results via combine_plots()).

3. Optional intermediate functions — e.g. BarPlotSingle, BarPlotGrouped — called by *Atomic() when there are significantly different rendering paths (with vs. without group_by).

SomePlot <- function(
    data,
    # Column(s) to split data into independent sub-plots.
    # If NULL, all data goes into a single plot.
    split_by, split_by_sep,
    # Column(s) to group data within each sub-plot (e.g., fill color per group).
    group_by, group_by_sep,
    # Column(s) for ggplot2 native faceting within each sub-plot.
    # Up to 2 columns: 1 → facet_wrap, 2 → facet_grid.
    facet_by, facet_scales, facet_nrow, facet_ncol, facet_byrow,
    # Theming, colors, and display
    theme, theme_args, palette, palcolor, alpha, aspect.ratio,
    legend.position, legend.direction, title, subtitle, xlab, ylab,
    # NA and empty factor level handling
    keep_na, keep_empty,
    # Combine control (when split_by is used)
    # TRUE (default) → return patchwork; FALSE → return list of individual plots
    combine, nrow, ncol, byrow,
    # patchwork options passed to wrap_plots()
    axes, axis_titles, guides, design,
    seed,
    ...
) {
    # 1. Validate arguments
    validate_common_args(seed, facet_by = facet_by)

    # 2. Prepare and split data
    #    keep_na/keep_empty are normalized per-column
    #    Data is split into a named list by split_by levels
    datas <- split(data, data[[split_by]])

    # 3. Generate one plot per split, dispatching to *Atomic()
    plots <- lapply(names(datas), function(nm) {
        SomePlotAtomic(
            datas[[nm]],
            # per-split palette, palcolor, legend settings
            palette = palette[[nm]],
            palcolor = palcolor[[nm]],
            legend.position = legend.position[[nm]],
            legend.direction = legend.direction[[nm]],
            title = title %||% nm,
            ...
        )
    })
    names(plots) <- names(datas)

    # 4. Combine via patchwork
    combine_plots(
        plots,
        combine = combine,
        split_by = split_by,
        nrow = nrow, ncol = ncol, byrow = byrow,
        axes = axes, axis_titles = axis_titles,
        guides = guides, design = design
    )
}

Key design decisions: - split_by splits data into separate ggplot objects that are later assembled via patchwork::wrap_plots(). Each sub-plot has independent scales and legends. - facet_by uses ggplot2’s native faceting (facet_wrap/facet_grid) within a single plot object. Scales can be shared or free via facet_scales. - Per-split customization of palette, palcolor, legend.position, and legend.direction is supported via named lists keyed by split level names. - combine = FALSE returns the list of individual plots instead of a combined patchwork object, useful for custom assembly.

Splitting vs faceting

plotthis provides two complementary ways to create multi-panel plots: splitting (via split_by) and faceting (via facet_by). Understanding the difference is important for choosing the right approach:

Splitting (split_by)

• The data is split into separate subsets by the levels of the split_by column(s).
• Each subset produces an independent ggplot object via the *Atomic() function.
• The individual plots are then combined into one using patchwork::wrap_plots().
• Each sub-plot has its own scales and legends (though legends can be collected via the guides argument).
• Per-split customization is supported: you can specify different palette, palcolor, legend.position, and legend.direction for each split level using named lists.
• Use combine = FALSE to get a list of individual plots instead of a combined patchwork object, useful for further custom assembly.
• Splitting works with any plot type, including those not built on ggplot2 (e.g., Heatmap, VennDiagram).

Faceting (facet_by)

• Uses ggplot2’s native faceting (facet_wrap for 1 column, facet_grid for 2 columns).
• All facets share a single ggplot object with shared or free scales (controlled by facet_scales).
• Scales and legends are shared across facets.
• More efficient than splitting for simple layouts — fewer plot objects, faster rendering.
• Up to 2 columns can be used for faceting.

Choosing between them

Scenario	Recommendation
Need per-panel different color palettes or legends	Use split_by
Need independent axis scales per panel	Use split_by
Want simple, shared-scale multi-panel layout	Use facet_by
Plot type doesn’t support faceting (non-ggplot2)	Use split_by
Need both splitting AND faceting	Use both — split_by creates groups of plots, facet_by facets within each

Argument naming conventions

The arguments in the plotting functions are named in a consistent way. _ is used to separate words in the argument names, in favor of ., unless the argument is passed to a ggplot2 function (e.g. theme). The _ is used to separate words in the argument names to make the argument names more readable and less confusing with the . in the function names, which could work as a method call. The argument names are all lowercased.

The height and width attributes

Every plot created by plotthis carries height and width attributes (in inches). These are calculated by calculate_plot_dimensions() based on:

• The number of categories on each axis (n_x, n_y)
• The aspect ratio (aspect.ratio)
• Legend position, direction, and label lengths
• Minimum and maximum dimension bounds (3–12 inches by default)

Note: These are estimated dimensions, not the exact rendered size. They are intended as a starting point that you can adjust.

You can use these values to set chunk options in R Markdown:

p <- SomePlot(data, x = "category")

Then set chunk options like fig.width = attr(p, "width") and fig.height = attr(p, "height").

Or to save the plot to a file with the estimated size:

p <- SomePlot(data, x = "category")
png("plot.png",
    width = attr(p, "width"), height = attr(p, "height"),
    units = "in", res = 150)
print(p)
dev.off()

Accessing the plotting data via p$data

Every plot object returned by plotthis retains the data used for plotting in p$data. This is useful for inspecting the processed data after transformations like keep_na/keep_empty handling, aggregation, or scaling.

For a simple plot without split_by, p$data contains the data frame as used by the *Atomic() function:

p <- BarPlot(data = iris, x = "Species")
head(p$data)

## # A tibble: 3 × 2
##   Species       .y
##   <fct>      <int>
## 1 setosa        50
## 2 versicolor    50
## 3 virginica     50

When split_by is used, combine_plots() row-binds the individual data frames from each sub-plot. The combined data is stored on the last sub-plot (which patchwork::wrap_plots() uses as the rendering base), with each layer retaining its original per-split data explicitly so that rendering is unaffected. The result is that p$data returns the combined data uniformly for both simple and split plots:

p <- BarPlot(
    data = iris,
    x = "Species", y = "Petal.Length",
    split_by = "Species"
)
unique(p$data[["Species"]])  # shows the split levels

## [1] "setosa"     "versicolor" "virginica"

table(p$data[["Species"]])   # counts per split level

##
##     setosa versicolor  virginica
##         50         50         50

To inspect the data for a specific split level:

subset(p$data, Species == "setosa")

Note that when split_by is used, the combined p$data is reconstructed from the individual sub-plot data — it may differ from the original input data due to per-split processing (keep_na, keep_empty, aggregation, etc.).

Tracing the ggplot calls for debugging

When options(plotthis.gglogger.enabled = TRUE) is set, plotthis uses the gglogger package instead of ggplot2::ggplot(). The gglogger::ggplot() function records every ggplot2 layer addition as a log entry, making it easy to inspect how a plot is constructed.

options(plotthis.gglogger.enabled = TRUE)

p <- BarPlot(data = iris, x = "Species")
p$logs

## Reference class object of class "GGLogs"
## Field "logs":
## [[1]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "ggplot2::ggplot(data, aes(x = !!sym(x), y = !!sym(y), fill = !!sym(fill_by)))"
##
## [[2]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "geom_col(alpha = alpha, width = width, show.legend = TRUE)"
##
## [[3]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "labs(title = title, subtitle = subtitle, x = xlab %||% x, y = ylab %||% "
## [2] "    y)"
##
## [[4]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "scale_x_discrete(expand = expand$x, drop = !isTRUE(keep_empty_x))"
##
## [[5]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "scale_y_continuous(expand = expand$y)"
##
## [[6]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "do_call(theme, theme_args)"
##
## [[7]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "ggplot2::theme(aspect.ratio = aspect.ratio, legend.position = legend.position, "
## [2] "    legend.direction = legend.direction, panel.grid.major = element_line(colour = \"grey80\", "
## [3] "        linetype = 2), axis.text.x = element_text(angle = x_text_angle, "
## [4] "        hjust = just$h, vjust = just$v))"
##
## [[8]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "scale_fill_manual(name = fill_name %||% fill_by, na.value = colors[\"NA\"] %||% "
## [2] "    \"grey80\", values = colors, guide = fill_guide)"
##
## [[9]]
## Reference class object of class "GGLog"
## Field "code":
## [1] "coord_cartesian(ylim = c(y_min, y_max))"

This is useful for debugging (seeing exactly what layers and scales were added) and for learning how the plotting functions work internally. Disable it when not needed to avoid overhead:

options(plotthis.gglogger.enabled = FALSE)

Providing extra data via data attributes

Some plotting functions accept large supplementary data (e.g., GSEAPlot needs gene ranks and gene sets). Rather than passing them as separate arguments every time, you can attach them as attributes of the data frame. The function will automatically look them up.

Specifically, when an argument defaults to a string starting with @ (e.g., "@gene_ranks"), the function looks up the attribute of data with that name (stripping the @ prefix). This means the following two calls are equivalent:

# Method 1: Attach extra data as attributes
data <- gsea_result
attr(data, "gene_ranks") <- gene_ranks
attr(data, "gene_sets") <- gene_sets
GSEAPlot(data)

# Method 2: Pass directly as arguments
GSEAPlot(data, gene_ranks = gene_ranks, gene_sets = gene_sets)

This pattern is used by GSEAPlot, GSEASummaryPlot, and other functions that require auxiliary data beyond the main data frame.

Handling NA values and unused levels of factors

NA values

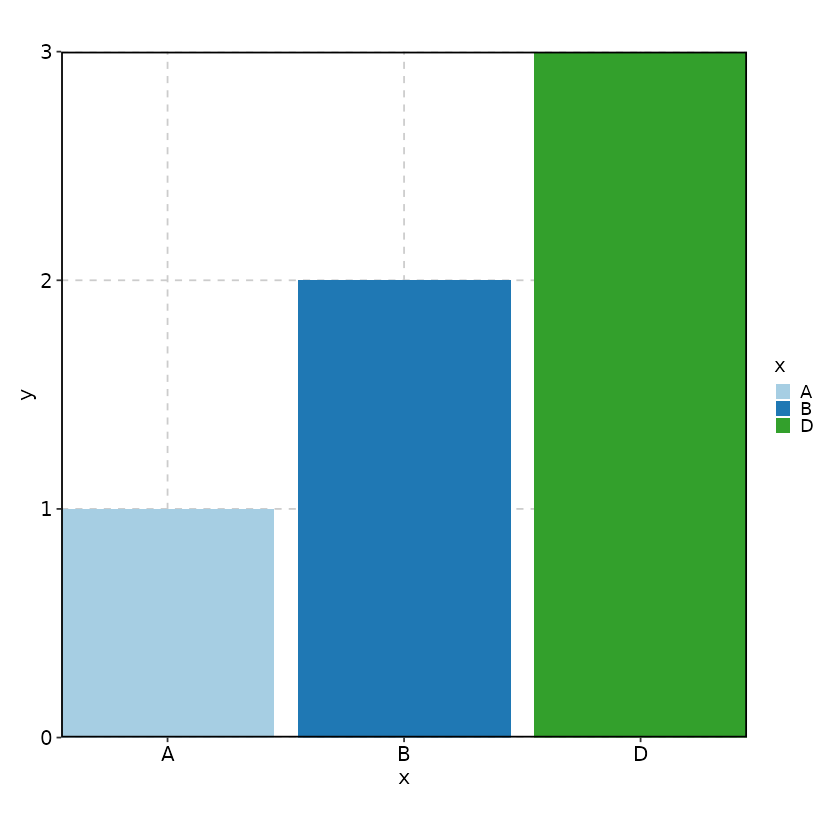

When NA values appear in grouping or categorical columns used in the plot (x-axis, fill, color, group, etc.), they are excluded by default. Use keep_na to control this behavior:

• FALSE (default): Drop NA values — they are excluded from the plot and legend.
• TRUE or NA: Keep NA values as NA — they are treated as a separate category in the plot and legend. The default color is "grey80"; customize it via palcolor = c("NA" = "orange").
• A character string (e.g., "missing"): Replace NA values with that string — they become a labeled category in the plot and legend. Color is determined by the palette as usual.

See the palette and palcolor section for details on customizing the NA color.

Unused (Empty) levels of factors

When there are unused levels of factors in the grouping variables or category variables that are used in the plot (x-axis, fill, color, group, etc.), they will be included in the plot by default. You can use keep_empty option to control whether and how to keep the unused levels of factors.

keep_empty can take 3 values:

• TRUE: just keep the unused levels of factors as they are, and they will be treated as separate groups or categories. They will be included in the plot and the legend.
• FALSE: drop the unused levels of factors, and they will not be included in the plot or the legend. This is the default behavior.
• "level" or "levels": The unused levels of factors will not be plotted (for example, on x-axis), but they will be included when determining the colors for the groups or categories, and they will not be included in the legend. Use TRUE if you want to include them in the legend.

When keep_empty is TRUE or "level", the colors for the unused levels of factors will be determined by palette and palcolor as usual, even though they are not plotted (they will affect the colors of existing levels).

data <- data.frame(
    # C is an unused level
    x = factor(c("A", "B", "D"), levels = c("A", "B", "C", "D")),
    y = c(1, 2, 3)
)

# Excluded by default

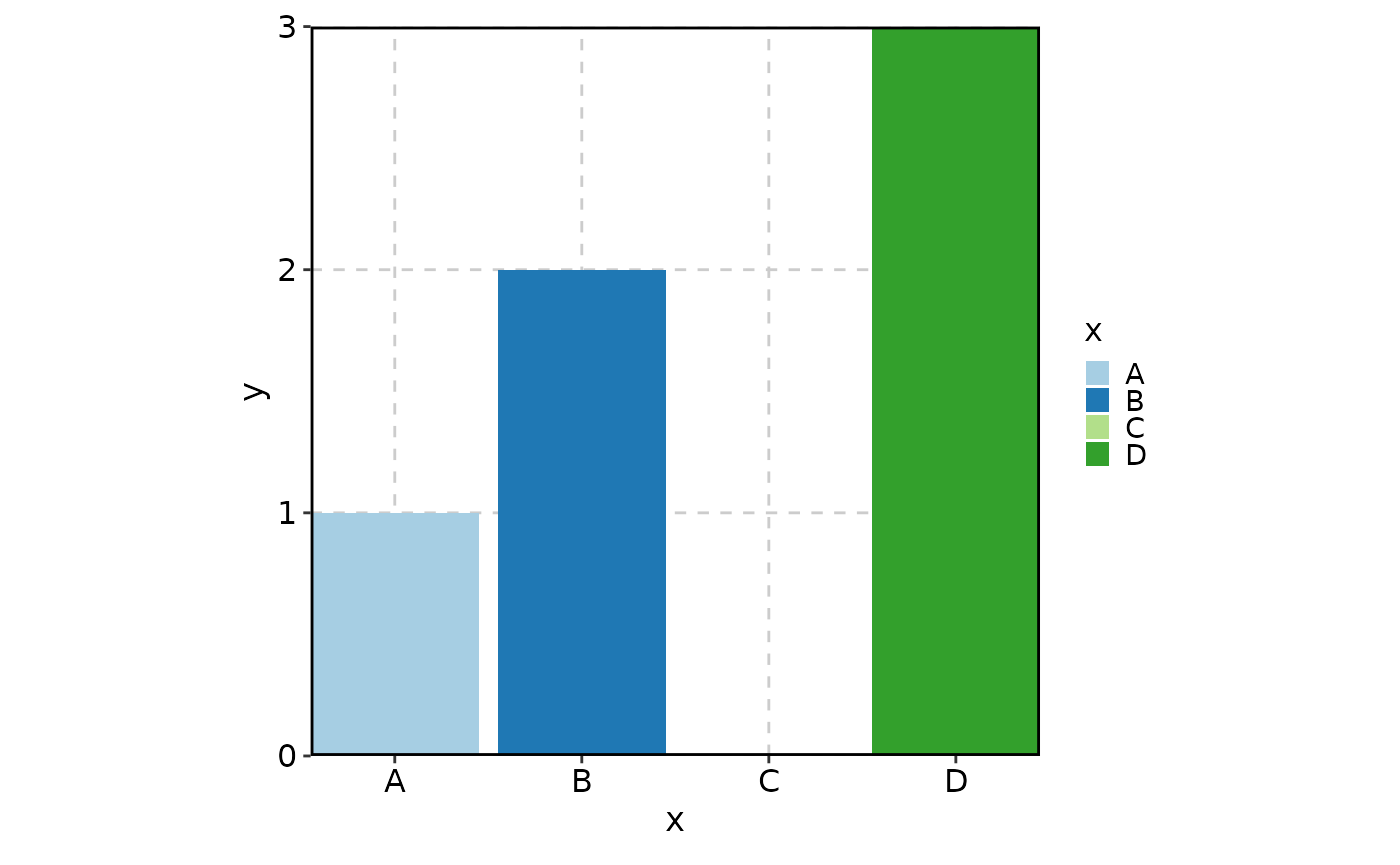

BarPlot(
    data = data,
    x = "x", y = "y"
)

# Keep the unused level "C"

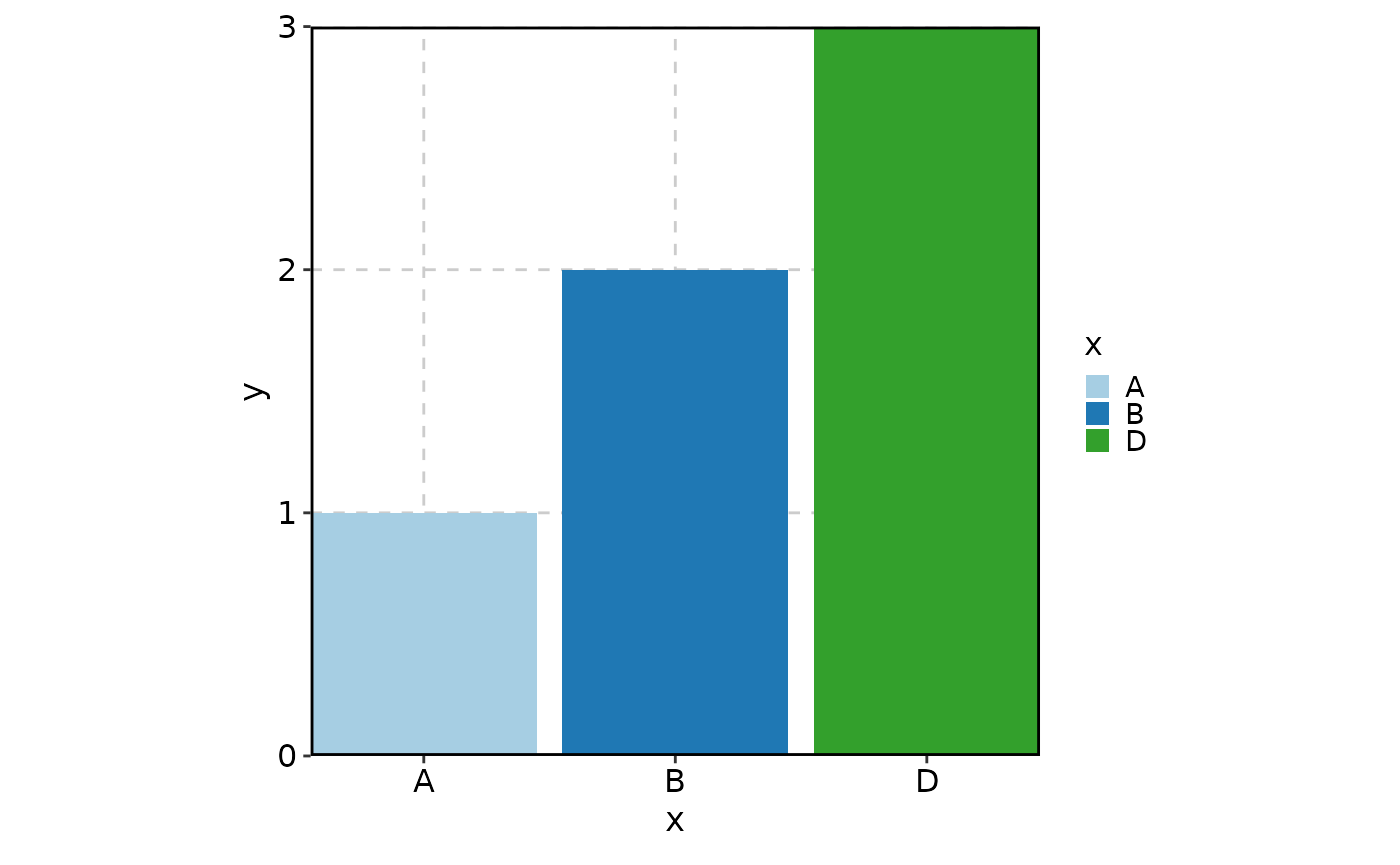

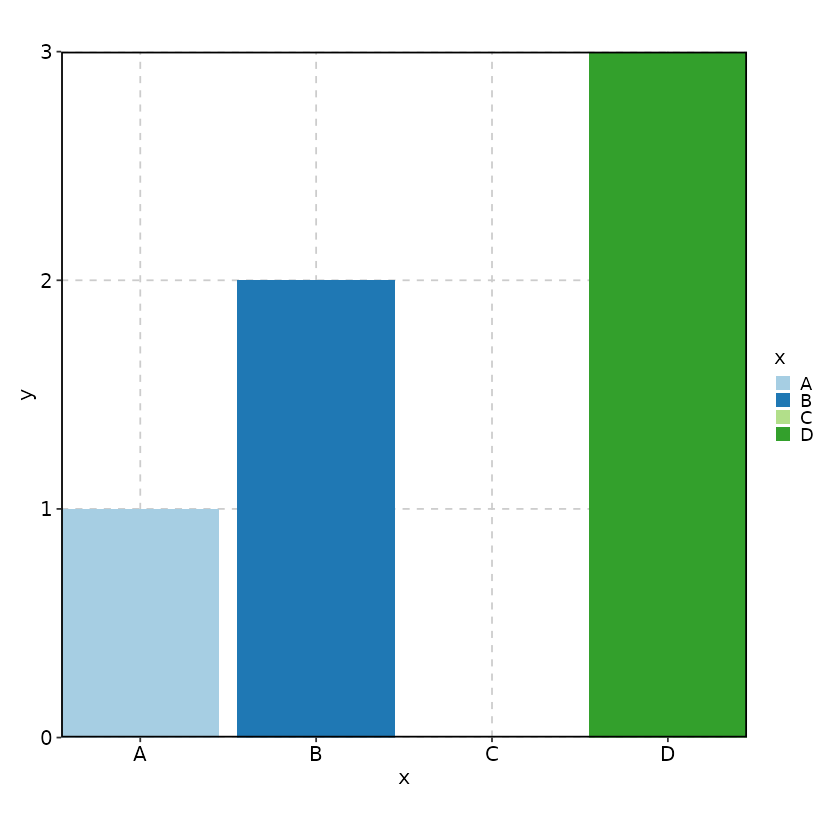

BarPlot(
    data = data,
    x = "x", y = "y",
    keep_empty = TRUE
)

# Keep the unused level "C" for color assignment but not plotting
BarPlot(
    data = data,
    x = "x", y = "y",
    keep_empty = "level"
)

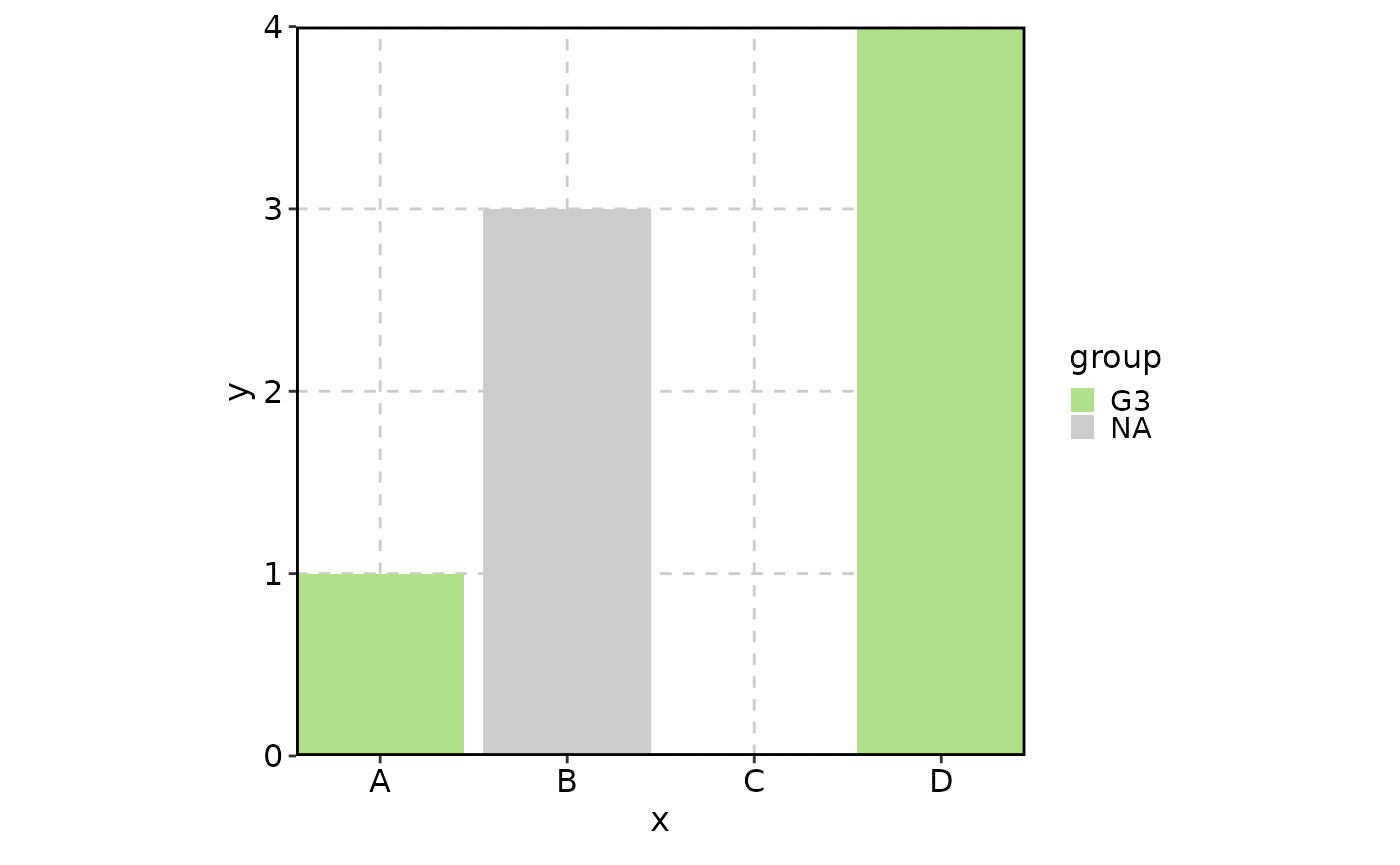

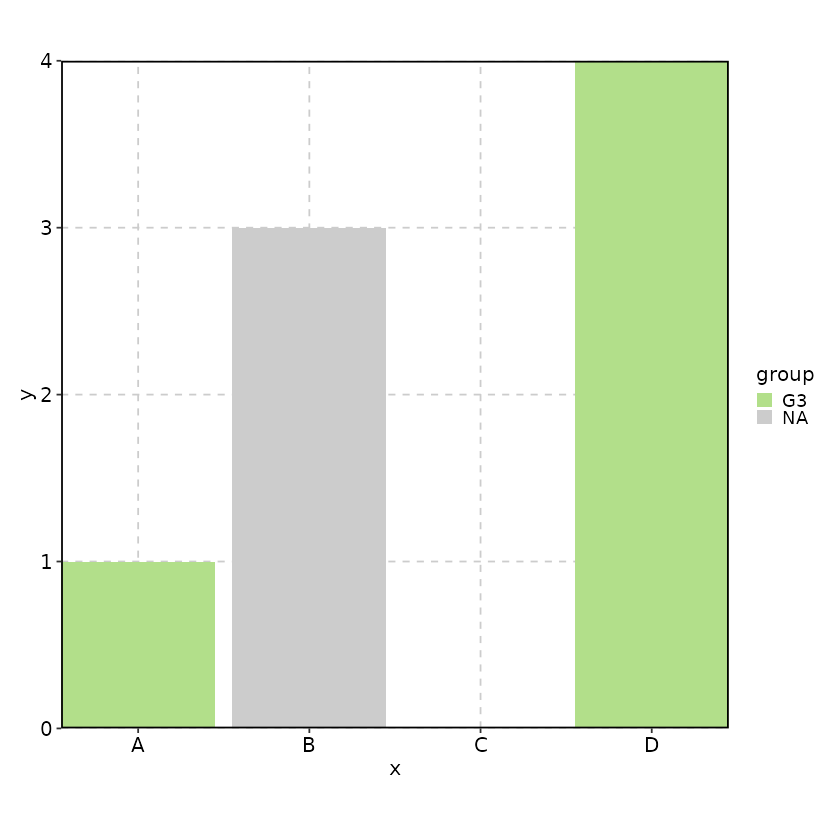

Variable-level control of keeping NA values and unused levels of factors

The keep_na and keep_empty arguments can also take a named list to control the behavior for each variable separately. The names of the list should correspond to the variables in the data. For example:

data <- data.frame(
    x = factor(c("A", NA, "B", "D"), levels = c("A", "B", "C", "D")),
    group = factor(c("G3", "G1", NA, "G3"), levels = c("G1", "G2", "G3")),
    y = c(1, 2, 3, 4)
)

BarPlot(
    data = data,
    x = "x", y = "y", fill_by = "group",
    keep_empty = list(x = TRUE, group = "level"),
    keep_na = list(x = FALSE, group = TRUE)
)
