UpSet Plot — UpsetPlot • plotthis

Draws an UpSet plot visualising set intersections and set sizes. The plot comprises:

A horizontal bar chart showing the size of each intersection, filled by the intersection count.
A combination matrix (rows = sets, columns = intersections) with membership dots and connecting lines.
A set-size bar chart on the left of the matrix (added automatically by ggupset).

The function accepts data in four formats:

List — a named list of element vectors (one per set).
Long — a data frame with one row per (set, element) pair.
Wide — a data frame where each row is an element and each set has its own logical or 0/1 membership column.
UpsetPlotData — a pre-processed object from prepare_upset_data().

Supports splitting into sub-plots via split_by, per-split colour palettes and legend control, and combining sub-plots via patchwork.

Usage

UpsetPlot(
  data,
  in_form = c("auto", "long", "wide", "list", "upset"),
  split_by = NULL,
  split_by_sep = "_",
  group_by = NULL,
  group_by_sep = "_",
  id_by = NULL,
  label = TRUE,
  label_fg = "black",
  label_size = NULL,
  label_bg = "white",
  label_bg_r = 0.1,
  palette = "Blues",
  palcolor = NULL,
  palreverse = FALSE,
  alpha = 1,
  specific = TRUE,
  theme = "theme_this",
  theme_args = list(),
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  aspect.ratio = 0.6,
  legend.position = "right",
  legend.direction = "vertical",
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  combmatrix_gap = 6,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data: A data frame.
in_form: A character string specifying the input format. One of "auto" (default; detect from data structure), "long", "wide", "list", or "upset".
split_by: The column(s) to split the data by and produce separate sub-plots. Only supported for data.frame input (list input raises an error). Multiple columns concatenated with split_by_sep.
split_by_sep: A character string to separate concatenated split_by columns. Default: "_".
group_by: Columns to group the data for plotting For those plotting functions that do not support multiple groups, They will be concatenated into one column, using group_by_sep as the separator
group_by_sep: The separator for multiple group_by columns. See group_by
id_by: A character string specifying the column name for instance identifiers. Required for long format; optional for wide format (a synthetic .id column is created if omitted).
label: A logical value. When TRUE (default), count labels are displayed above each intersection bar via geom_text_repel().
label_fg: A character string specifying the colour of the label text. Default: "black".
label_size: A numeric value specifying the size of the label text. Default: NULL (computed from base_size / 12 * 3.5).
label_bg: A character string specifying the background fill colour of the label. Default: "white".
label_bg_r: A numeric value specifying the corner radius of the label background, passed to geom_text_repel(bg.r). Default: 0.1.
palette: A character string specifying the palette to use. A named list or vector can be used to specify the palettes for different split_by values.
palcolor: A character string specifying the color to use in the palette. A named list can be used to specify the colors for different split_by values. If some values are missing, the values from the palette will be used (palcolor will be NULL for those values).
palreverse: A logical value indicating whether to reverse the palette. Default is FALSE.
alpha: A numeric value specifying the transparency of the plot.
specific: A logical value. When TRUE (default), only specific intersections are returned (elements belonging exclusively to the shown set combination). When FALSE, all overlapping items are included. See https://github.com/gaospecial/ggVennDiagram/issues/64.
theme: A character string or a theme class (i.e. ggplot2::theme_classic) specifying the theme to use. Default is "theme_this".
theme_args: A list of arguments to pass to the theme function.
title: A character string specifying the title of the plot. A function can be used to generate the title based on the default title. This is useful when split_by is used and the title needs to be dynamic.
subtitle: A character string specifying the subtitle of the plot.
xlab: A character string specifying the x-axis label.
ylab: A character string specifying the y-axis label.
aspect.ratio: A numeric value specifying the aspect ratio of the plot.
legend.position: A character string specifying the position of the legend. if waiver(), for single groups, the legend will be "none", otherwise "right".
legend.direction: A character string specifying the direction of the legend.
combine: Logical; when TRUE (default), returns a combined patchwork object. When FALSE, returns a named list of individual ggplot objects.
ncol, nrow: Integer number of columns / rows for the combined layout (passed to wrap_plots).
byrow: Logical; fill the combined layout by row. Default TRUE (passed to wrap_plots).
seed: A numeric seed for reproducibility. Passed to validate_common_args(). Default: 8525.
combmatrix_gap: A numeric value specifying the gap between rows of the combination matrix, measured at base_size = 12. The actual gap is scaled by text_size_scale = base_size / 12. Default: 6.
axes: A character string specifying how axes should be treated across the combined layout (passed to wrap_plots).
axis_titles: A character string specifying how axis titles should be treated across the combined layout. Defaults to axes.
guides: A character string specifying how legends should be collected across panels (passed to combine_plots()).
design: A custom layout design for the combined plot (passed to combine_plots()).
...: Additional arguments.

Value

A ggplot object, a patchwork object, or a named list of ggplot objects (when combine = FALSE), each with height and width attributes in inches.

split_by Workflow

When split_by is provided:

Guard — split_by is only supported for data.frame input. If data is a list (or other non-data.frame type) and split_by is non-NULL, an error is raised.
Column validation — check_columns() resolves the split_by column(s) with force_factor = TRUE and allow_multi = TRUE. Multiple columns are concatenated with split_by_sep.
Data splitting — empty factor levels in split_by are dropped via droplevels(), then the data frame is split by split_by (level order is preserved). If split_by is NULL, the data is wrapped in a single-element list with name "...".
Per-split resolution — check_palette(), check_palcolor(), and check_legend() resolve per-split palette, palcolor, legend.position, and legend.direction.
Atomic dispatch — UpsetPlotAtomic is called for each split. If title is a function, it receives the split level name and can generate dynamic titles. When in wide mode (in_form is "auto" or "wide") and group_by is NULL, the set columns are auto-detected as all columns except id_by and split_by.
Combination — Results are combined via combine_plots() (when combine = TRUE) or returned as a named list.

Examples

# \donttest{
# ---- list input -------------------------------------------------------
data <- list(
    A = 1:5,
    B = 2:6,
    C = 3:7,
    D = 4:8
)

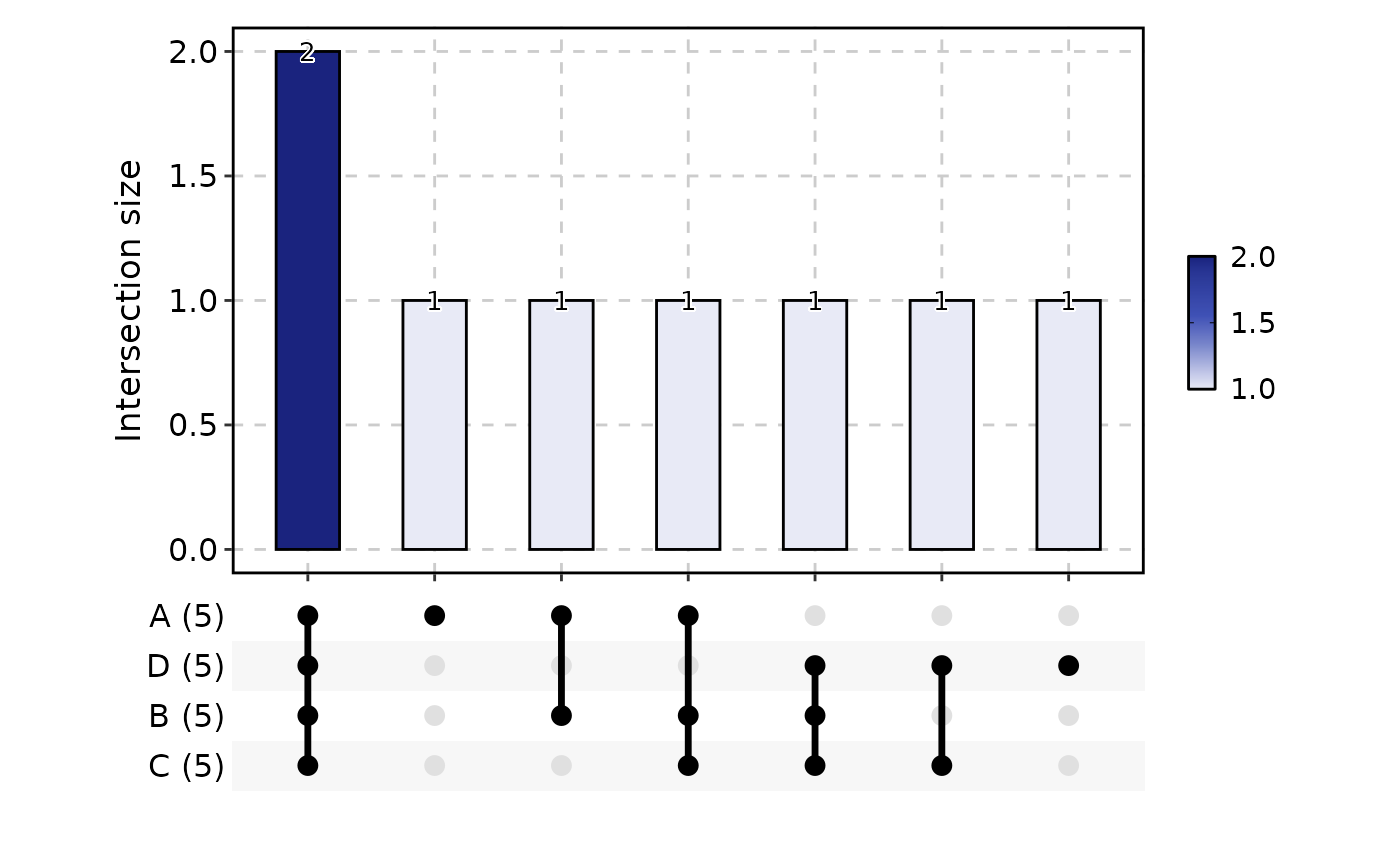

UpsetPlot(data)

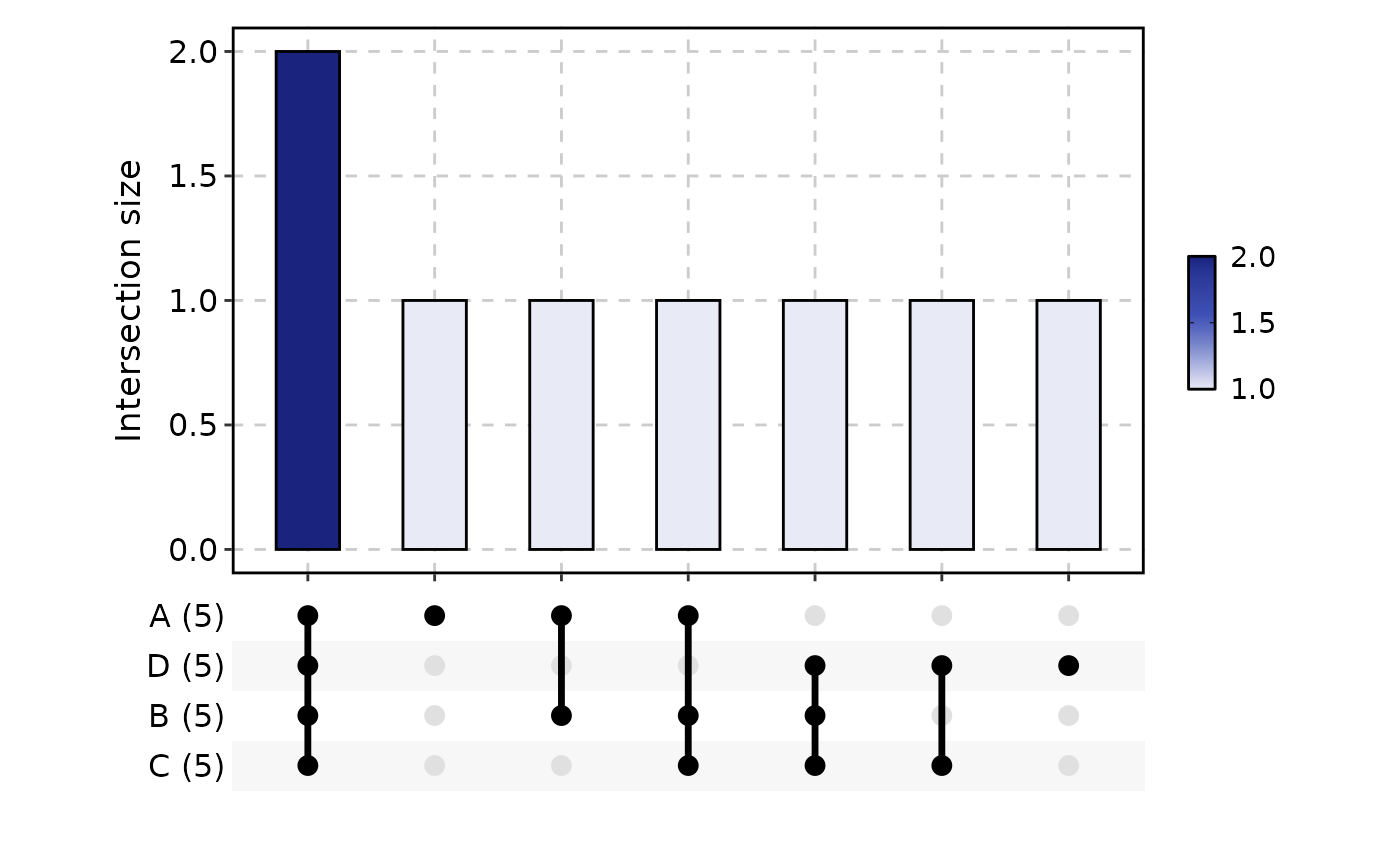

UpsetPlot(data, label = FALSE)

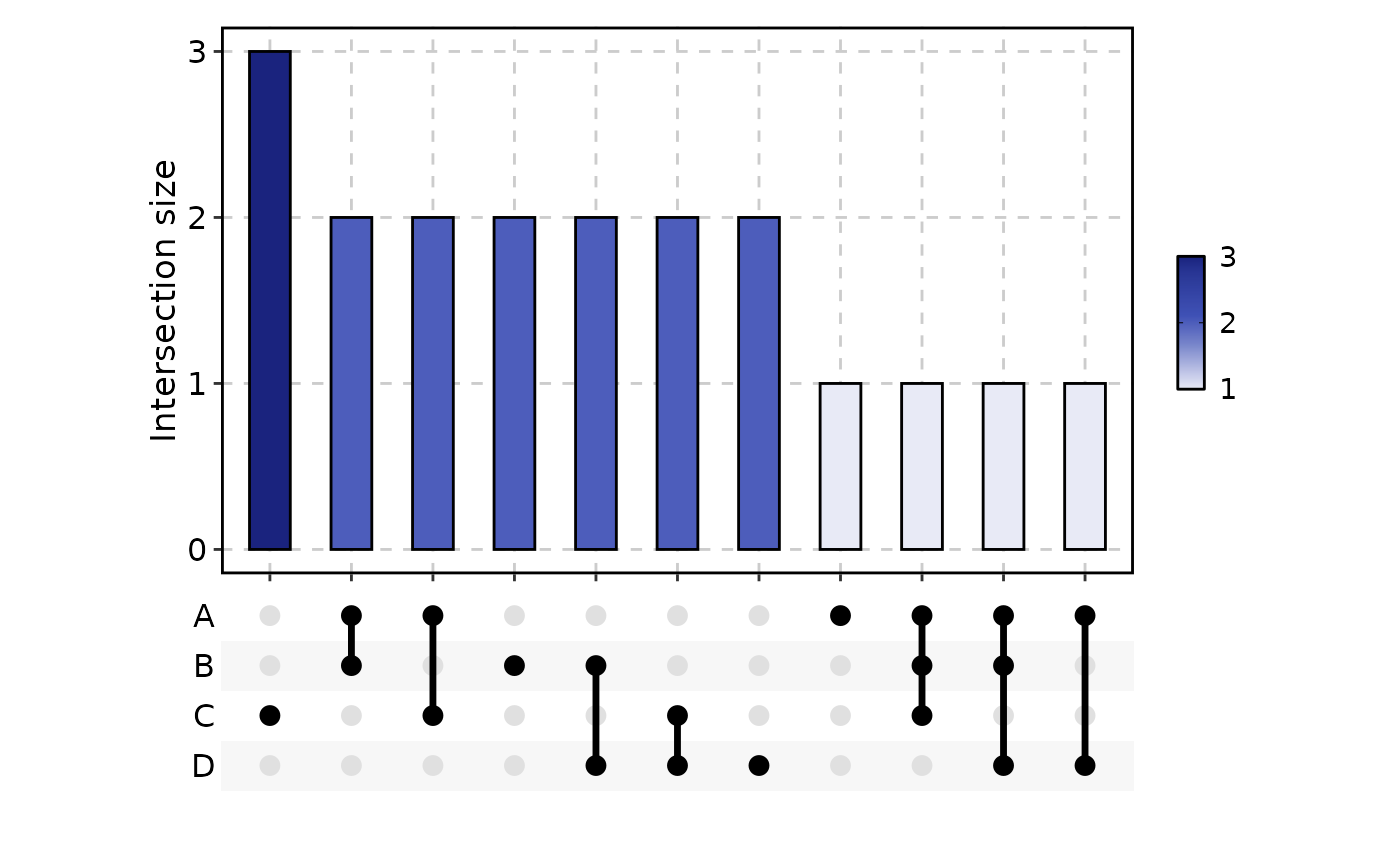

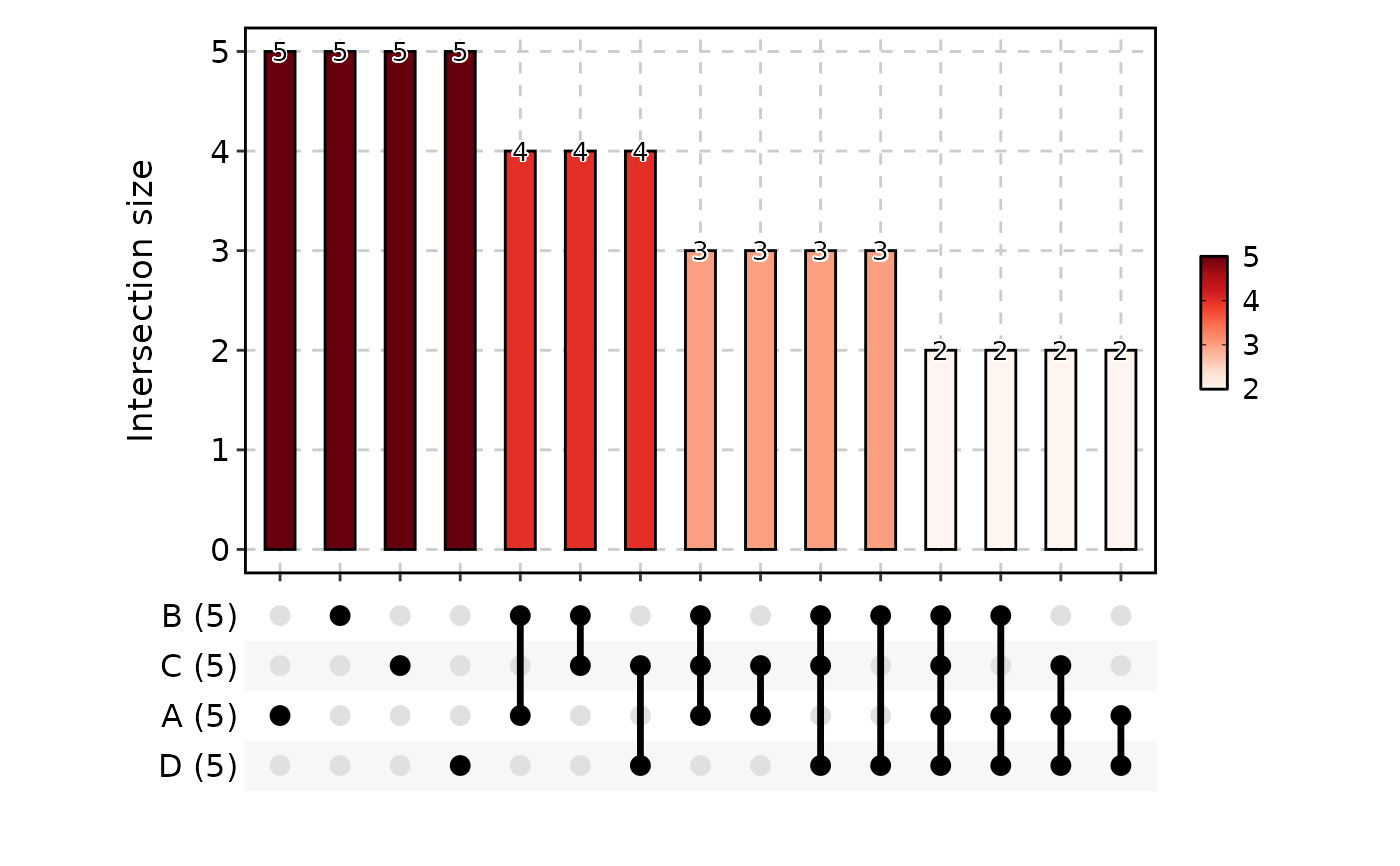

UpsetPlot(data, palette = "Reds", specific = FALSE)


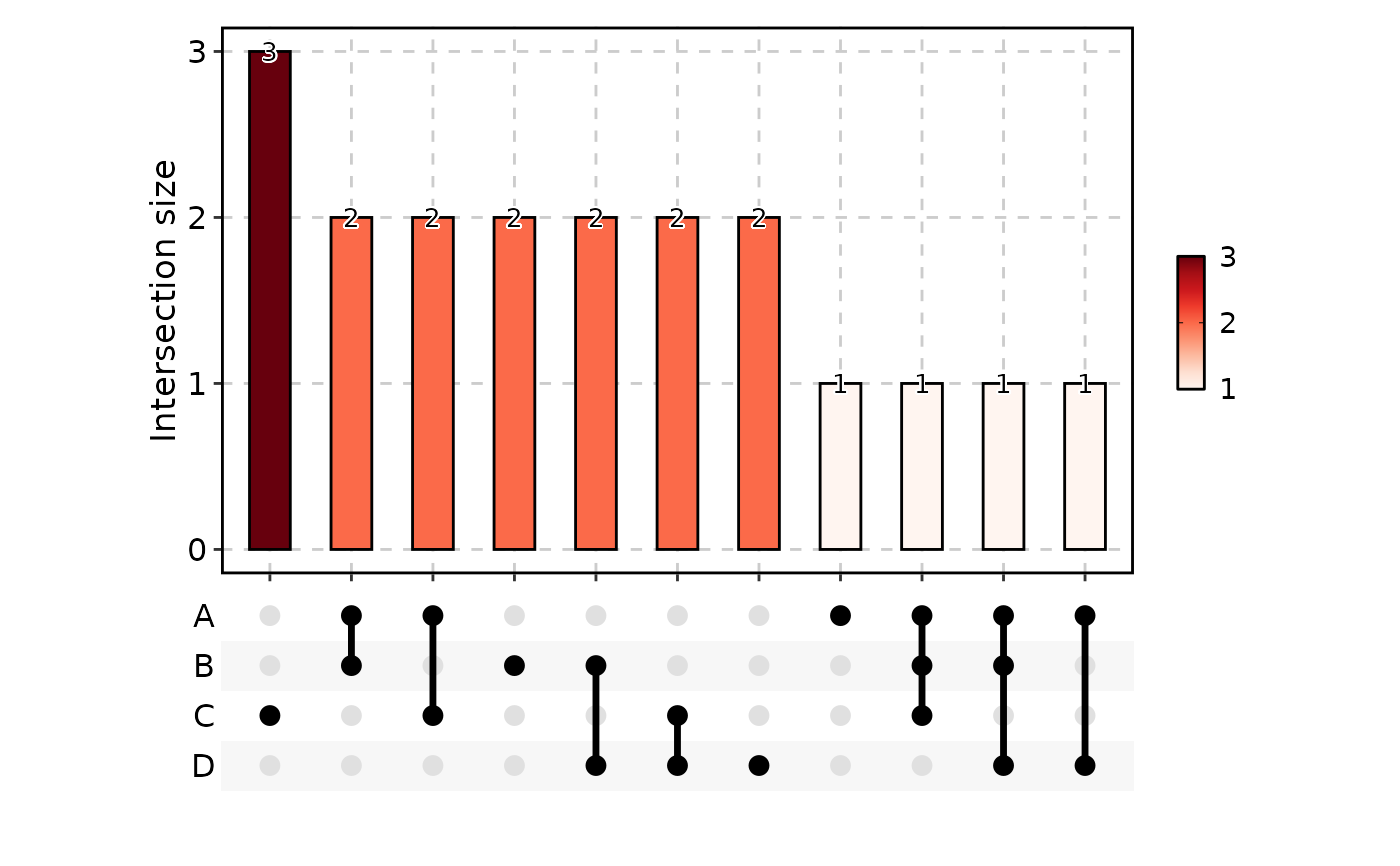

# ---- long-format data frame ------------------------------------------
data_long <- data.frame(
    group_by = factor(
         c(rep("A", 5), rep("B", 5), rep("C", 5), rep("D", 5)),
         levels = c("A", "B", "C", "D")
    ),
    id_by = c(1:5, 2:6, 3:7, 4:8)
)

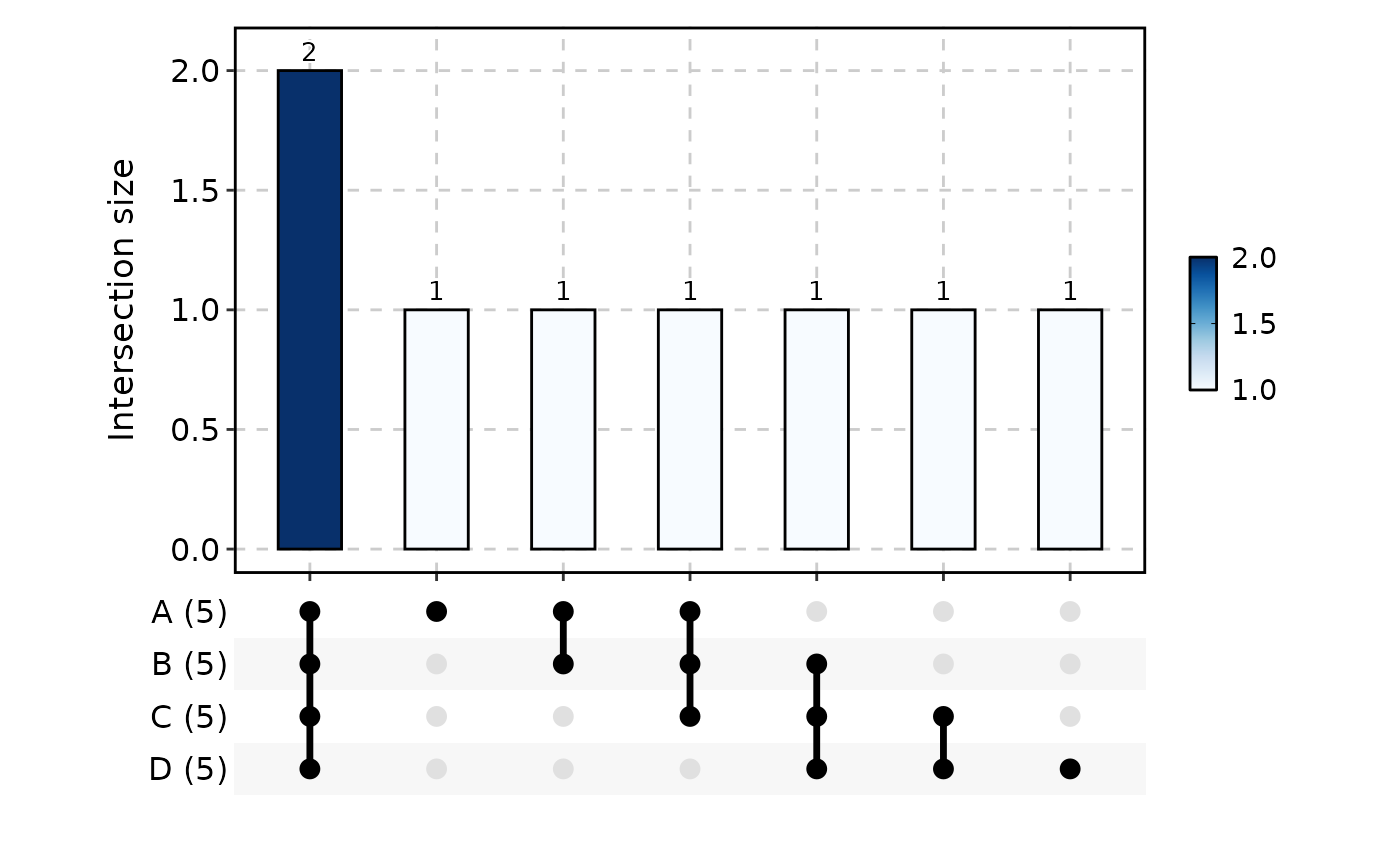

UpsetPlot(data_long, in_form = "long", group_by = "group_by", id_by = "id_by")


# ---- wide-format data frame ------------------------------------------
data <- data.frame(
    id = LETTERS[1:10],
    B = c(1, 0, 1, 1, 0, 0, 1, 0, 1, 0),
    A = c(1, 1, 1, 0, 0, 1, 0, 0, 1, 0),
    D = c(1, 0, 0, 1, 1, 0, 0, 1, 0, 1),
    C = c(0, 1, 1, 0, 1, 0, 1, 0, 1, 0)
)

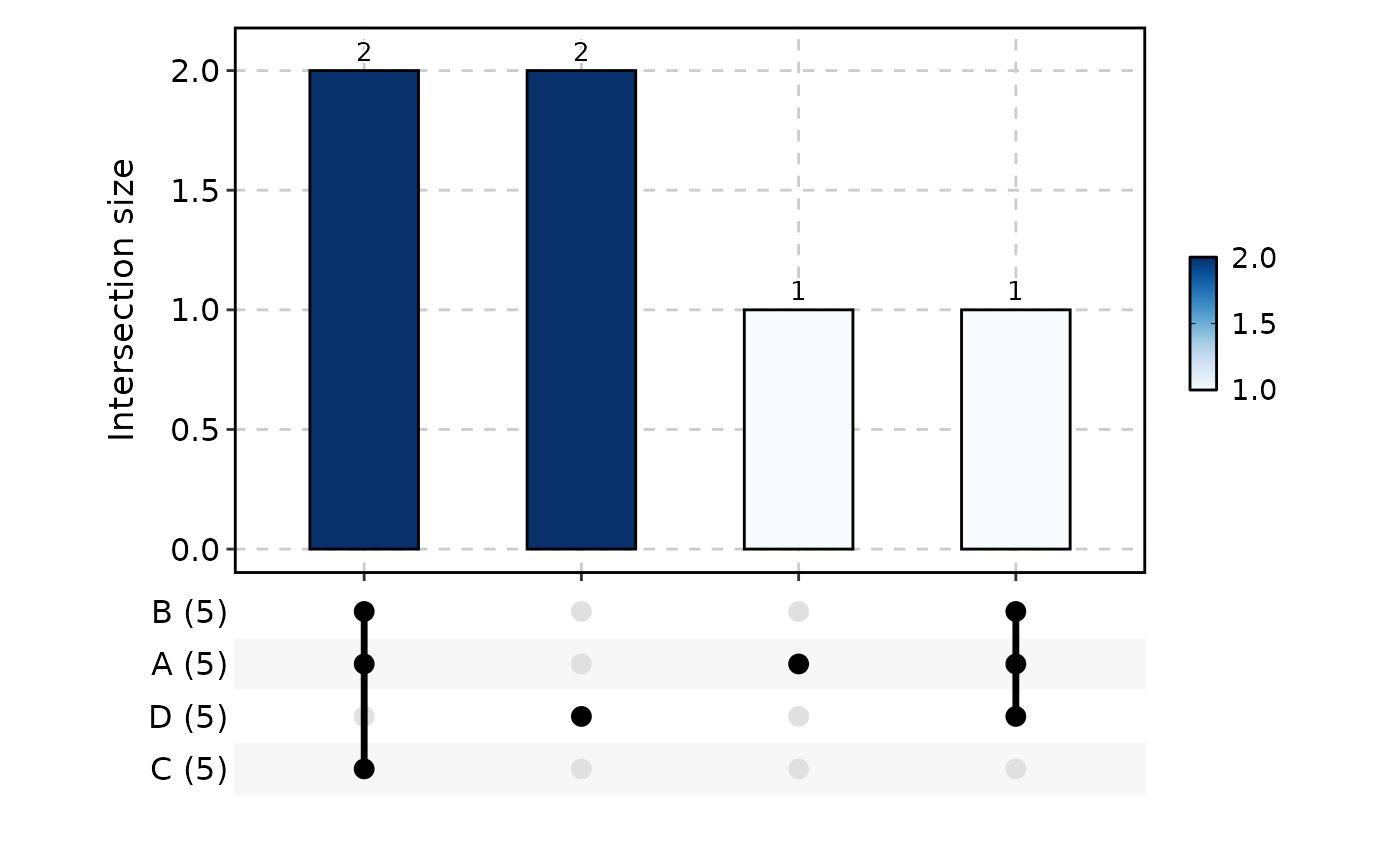

UpsetPlot(data, in_form = "wide", id_by = "id", n_intersections = 4)
#> Warning: Removed 4 rows containing non-finite outside the scale range (`stat_count()`).
#> Warning: Removed 4 rows containing non-finite outside the scale range (`stat_count()`).

# }
