Linked Heatmap

Source: R/linkedheatmap.R
LinkedHeatmap.Rd

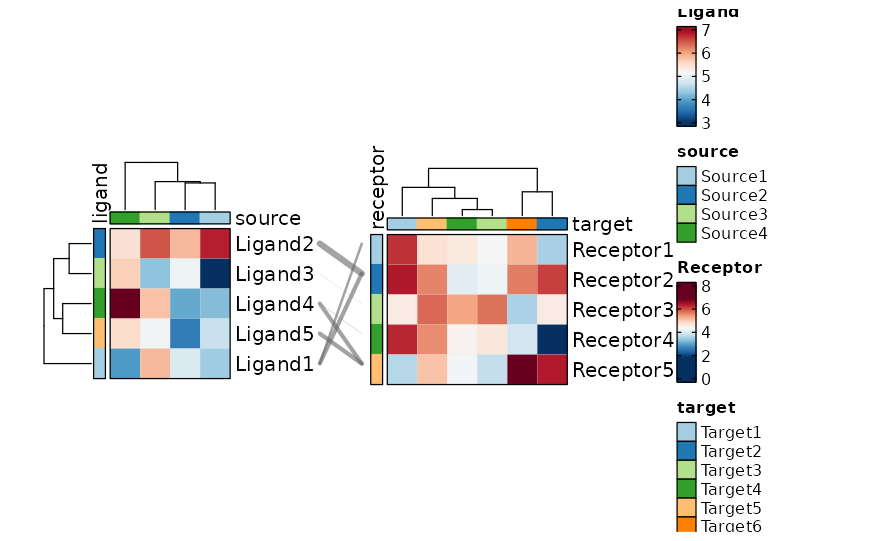

Draw two heatmaps side-by-side with spline link lines connecting matching rows across the two heatmaps. This is the public, exported interface for creating linked-heatmap visualisations.

A typical use case is visualising ligand–receptor interactions: the left heatmap shows ligand expression (rows = ligands, columns = cell sources), the right heatmap shows receptor expression (rows = receptors, columns = cell targets), and link curves connect each ligand to its cognate receptor(s).

Usage

LinkedHeatmap(
  data,
  values_by,
  values_fill = NA,
  name = NULL,
  split_by = NULL,
  split_by_sep = "_",
  rows_by = NULL,
  rows_by_sep = "_",
  rows_split_by = NULL,
  rows_split_by_sep = "_",
  columns_by = NULL,
  columns_by_sep = "_",
  columns_split_by = NULL,
  columns_split_by_sep = "_",
  rows_data = NULL,
  columns_data = NULL,
  keep_na = FALSE,
  keep_empty = FALSE,
  rows_orderby = NULL,
  columns_orderby = NULL,
  columns_name = NULL,
  columns_split_name = NULL,
  rows_name = NULL,
  rows_split_name = NULL,
  palette = "RdBu",
  palcolor = NULL,
  palreverse = FALSE,
  pie_size_name = "size",
  pie_size = NULL,
  pie_values = "length",
  pie_name = NULL,
  pie_group_by = NULL,
  pie_group_by_sep = "_",
  pie_palette = "Spectral",
  pie_palcolor = NULL,
  bars_sample = 100,
  label = identity,
  label_size = 10,
  label_color = "black",
  label_name = "label",
  mark = identity,
  mark_color = "black",
  mark_size = 1,
  mark_name = "mark",
  violin_fill = NULL,
  boxplot_fill = NULL,
  dot_size = 8,
  dot_size_name = "size",
  legend_items = NULL,
  legend_discrete = FALSE,
  legend.position = "right",
  legend.direction = "vertical",
  lower_quantile = 0,
  upper_quantile = 0.99,
  lower_cutoff = NULL,
  upper_cutoff = NULL,
  add_bg = FALSE,
  bg_alpha = 0.5,
  add_reticle = FALSE,
  reticle_color = "grey",
  cluster_columns = NULL,
  cluster_rows = NULL,
  show_row_names = NULL,
  show_column_names = NULL,
  border = TRUE,
  title = NULL,
  title_params = NULL,
  column_title = NULL,
  row_title = NULL,
  na_col = "grey85",
  row_names_side = "right",
  column_names_side = "bottom",
  row_annotation = NULL,
  row_annotation_side = NULL,
  row_annotation_palette = NULL,
  row_annotation_palcolor = NULL,
  row_annotation_type = NULL,
  row_annotation_params = NULL,
  row_annotation_agg = NULL,
  column_annotation = NULL,
  column_annotation_side = NULL,
  column_annotation_palette = NULL,
  column_annotation_palcolor = NULL,
  column_annotation_type = NULL,
  column_annotation_params = NULL,
  column_annotation_agg = NULL,
  link_width_by = NULL,
  link_width_scale = 5,
  link_color = "grey40",
  link_alpha = 0.6,
  flip = FALSE,
  alpha = 1,
  seed = 8525,
  padding = 15,
  base_size = 1,
  aspect.ratio = NULL,
  draw_opts = list(),
  layer_fun_callback = NULL,
  cell_type = c("tile", "bars", "label", "mark", "label+mark", "mark+label", "dot",
    "violin", "boxplot", "pie"),
  cell_agg = NULL,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data

A data frame in long format. Each row represents one observation; columns specify row/column membership for both left and right heatmaps as well as the values to encode as color.

values_by

Default column name for heatmap cell values. Used as fallback when left_values_by / right_values_by are not explicitly provided via ....

values_fill

A value used to fill missing cells in the matrix (passed to HeatmapAtomic). Default is NA (cells with no data are left empty).

name

Default legend title for the colour scale. Used as fallback when left_name / right_name are not provided via .... The suffixes " (left)" / " (right)" are appended automatically.

split_by

The column(s) to split data by and plot separately.

split_by_sep

The separator for multiple split_by columns. See split_by

rows_by

Default column for rows in both heatmaps. Used as fallback for left_rows_by / right_rows_by.

rows_by_sep

Separator for concatenated rows_by columns.

rows_split_by

Optional column name to split the rows of both heatmaps into groups (passed as row_split). When provided, row names in the link table are prefixed with the split level to disambiguate rows across splits.

rows_split_by_sep

Separator for concatenated rows_split_by columns.

columns_by

Default column for columns in both heatmaps. Used as fallback for left_columns_by / right_columns_by.

columns_by_sep

Separator for concatenated columns_by columns.

columns_split_by

Default column to split columns into groups. Used as fallback for left_columns_split_by / right_columns_split_by.

columns_split_by_sep

Separator for concatenated columns_split_by columns.

rows_data, columns_data

Optional data frames providing additional row / column metadata for annotations. Passed through to HeatmapAtomic.

keep_na, keep_empty

Passed through to HeatmapAtomic. See common_args for details.

rows_orderby, columns_orderby

Column name to order rows / columns by (disables clustering when set).

columns_name

Display name for the column annotation.

columns_split_name

Display name for the column split annotation.

rows_name

Display name for the row annotation.

rows_split_name

Display name for the row split annotation.

palette

A character string naming a palette (see show_palettes) or a character vector of colours for the main heatmap colour scale. Default "RdBu". Applied to both heatmaps unless overridden per-side via ....

palcolor

A custom colour vector that overrides palette for the main heatmap colour scale. Applied to both heatmaps unless overridden per-side.

palreverse

Logical; if TRUE, reverse the palette direction.

pie_size_name

Legend title for the pie size when cell_type = "pie".

pie_size

A numeric value or function returning the pie radius. When a function, it receives the count of groups in the pie and should return a radius.

pie_values

A function or string (convertible via match.arg) to compute the value represented by each pie slice. Default "length" counts observations per group.

pie_name

Default name for the pie legend. Used as fallback for left_pie_name / right_pie_name.

pie_group_by

Default column(s) for pie grouping. Used as fallback for left_pie_group_by / right_pie_group_by.

pie_group_by_sep

Separator for concatenated pie_group_by columns.

pie_palette, pie_palcolor

Palette and custom colours for pie slice fill colours.

bars_sample

Number of observations sampled per cell when cell_type = "bars". Default 100.

label

A function to compute text labels when cell_type = "label" (or "label+mark"). Receives the aggregated value for a cell and optionally row/column indices and names. See HeatmapAtomic for the full dispatch contract.

label_size

Default point size for label text (used as fallback when the label function does not return a size field).

label_color

Default colour for label text (used as fallback when the label function does not return a color field).

label_name

Legend title for the label colour scale.

mark

A function to compute mark symbols when cell_type = "mark" (or "label+mark"). Same dispatch contract as label. See HeatmapAtomic for supported mark types.

mark_color

Default mark colour (fallback).

mark_size

Default mark stroke width in pt (fallback).

mark_name

Legend title for the mark colour scale.

violin_fill

A character vector of colours to use as fill for violin plots when cell_type = "violin". If NULL, the annotation colour is used.

boxplot_fill

A character vector of colours to use as fill for boxplots when cell_type = "boxplot". If NULL, the annotation colour is used.

dot_size

Dot size when cell_type = "dot". Can be a numeric value or a function.

dot_size_name

Legend title for the dot size.

legend_items

A named numeric vector specifying custom legend entries for the main colour scale. Names become the displayed labels.

legend_discrete

Logical; if TRUE, treat the main colour scale as discrete.

legend.position

A character string specifying where to place the combined legend: "right" (default), "left", "top", "bottom", or "none".

legend.direction

Legend stacking direction: "vertical" (default) or "horizontal".

lower_quantile, upper_quantile

Quantiles used for clipping the colour scale when lower_cutoff / upper_cutoff are NULL. Defaults are 0 and 0.99 respectively.

lower_cutoff, upper_cutoff

Explicit cutoffs for the colour scale. Values outside the range are clamped (winsorized). Override lower_quantile / upper_quantile when set.

add_bg

Logical; if TRUE, add a background fill behind non-tile cell types. Not used for cell_type = "tile" or "bars".

bg_alpha

Numeric in \([0, 1]\) for background transparency.

add_reticle

Logical; if TRUE, draw a reticle (crosshair pattern) over the heatmap.

reticle_color

Colour for the reticle lines.

cluster_columns

Logical; cluster columns in both heatmaps. NULL lets HeatmapAtomic decide.

cluster_rows

Default clustering setting for rows. Used as fallback for left_cluster_rows / right_cluster_rows.

show_row_names, show_column_names

Logical; show row/column names.

border

Logical; draw a border around each heatmap. Default TRUE.

title

A character string for the overall plot title. A function can be used to generate a dynamic title from the default. Note that, left_title and right_title are used to set the title for each heatmap, and title is used to set the overall title for the combined plot.

title_params

A list of parameters passed to grid::grid.text() to control the title appearance. Default is list(gp = gpar(fontsize = 14, fontface = "bold")).

column_title, row_title

Character title displayed above the columns / beside the rows of each heatmap.

na_col

Colour used for NA cells. Default "grey85".

row_names_side

Default side for row names. Used as fallback for left_row_names_side / right_row_names_side. Default "right".

column_names_side

Side for column names. Default "bottom".

row_annotation

A structured list specifying row annotations. See HeatmapAtomic for the full specification.

row_annotation_side

Deprecated: use row_annotation with the side sub-key instead. Used as fallback for left_row_annotation_side / right_row_annotation_side. Default "left".

row_annotation_palette

Deprecated: use row_annotation with the palette sub-key instead.

row_annotation_palcolor

Deprecated: use row_annotation with the palcolor sub-key instead.

row_annotation_type

Deprecated: use row_annotation with the type sub-key instead.

row_annotation_params

Deprecated: use row_annotation with the params sub-key instead.

row_annotation_agg

Deprecated: use row_annotation with the agg sub-key instead.

column_annotation

A structured list specifying column annotations. See HeatmapAtomic for the full specification.

column_annotation_side

Deprecated: use column_annotation with the side sub-key instead.

column_annotation_palette

Deprecated: use column_annotation with the palette sub-key instead.

column_annotation_palcolor

Deprecated: use column_annotation with the palcolor sub-key instead.

column_annotation_type

Deprecated: use column_annotation with the type sub-key instead.

column_annotation_params

Deprecated: use column_annotation with the params sub-key instead.

column_annotation_agg

Deprecated: use column_annotation with the agg sub-key instead.

Optional column name in data whose values determine the stroke width of each link line (e.g. interaction strength). Values are min-max scaled to \([0, 1]\) and multiplied by link_width_scale.

Numeric scaling factor applied to the normalised link intensity values to produce final line widths (lwd). Default 5.

Colour of the link spline curves. Default "grey30".

Alpha transparency of link curves in \([0, 1]\). Default 0.8.

flip

Logical; must be FALSE for linked heatmaps (flipping is not supported). Default FALSE.

alpha

Alpha transparency for heatmap cells in \([0, 1]\).

seed

Random seed for reproducibility. Default 8525.

padding

Padding around the heatmap in CSS order (top, right, bottom, left). Supports 1–4 values. Default 15 (mm).

base_size

A positive numeric scalar used as a scaling factor for the overall heatmap size. Default 1 (no scaling). Values > 1 enlarge all cell dimensions proportionally.

aspect.ratio

Height-to-width ratio of a single heatmap cell. When NULL (default), sensible defaults are chosen per cell_type (e.g. 1 for tiles, 0.5 for bars, 2 for violins).

draw_opts

A named list of additional arguments passed to draw,HeatmapList-method. Internally managed arguments (padding, show_heatmap_legend, etc.) take precedence.

layer_fun_callback

A function to add custom graphical layers on top of each heatmap cell. Receives j, i, x, y, w, h, fill, sr, sc. See Heatmap for details.

cell_type

The type of cell to render. One of "tile" (default), "bars", "label", "mark", "label+mark" (or "mark+label"), "dot", "violin", "boxplot", "pie". Different cell types use different cell_fun / layer_fun implementations.

cell_agg

A function to aggregate values within each cell when cell_type = "tile" or "label". Default is mean.

combine

Whether to combine the plots into one when facet is FALSE. Default is TRUE.

nrow

A numeric value specifying the number of rows in the facet.

ncol

A numeric value specifying the number of columns in the facet.

byrow

A logical value indicating whether to fill the plots by row.

axes

A string specifying how axes should be treated. Passed to patchwork::wrap_plots(). Only relevant when split_by is used and combine is TRUE. Options are:

  • 'keep' will retain all axes in individual plots.

  • 'collect' will remove duplicated axes when placed in the same run of rows or columns of the layout.

  • 'collect_x' and 'collect_y' will remove duplicated x-axes in the columns or duplicated y-axes in the rows respectively.

axis_titles

A string specifying how axis titltes should be treated. Passed to patchwork::wrap_plots(). Only relevant when split_by is used and combine is TRUE. Options are:

  • 'keep' will retain all axis titles in individual plots.

  • 'collect' will remove duplicated titles in one direction and merge titles in the opposite direction.

  • 'collect_x' and 'collect_y' control this for x-axis titles and y-axis titles respectively.

guides

A string specifying how guides should be treated in the layout. Passed to patchwork::wrap_plots(). Only relevant when split_by is used and combine is TRUE. Options are:

  • 'collect' will collect guides below to the given nesting level, removing duplicates.

  • 'keep' will stop collection at this level and let guides be placed alongside their plot.

  • 'auto' will allow guides to be collected if a upper level tries, but place them alongside the plot if not.

design

Specification of the location of areas in the layout, passed to patchwork::wrap_plots(). Only relevant when split_by is used and combine is TRUE. When specified, nrow, ncol, and byrow are ignored. See patchwork::wrap_plots() for more details.

...

Additional arguments passed to LinkedHeatmapAtomic. All parameters listed above (and those inherited from LinkedHeatmapAtomic) can be specified with left_ or right_ prefixes for per-side control (e.g. left_palette = "Blues", right_palette = "Reds"). Unprefixed arguments apply to both sides. Also forwarded to Heatmap after prefix stripping.

Value

A patchwork object (class wrap_plots) with height and width attributes (in inches). When combine = FALSE, a named list of such objects, one per split_by level.

Left / right specification

Parameters that differ between the two heatmaps are prefixed with left_ or right_. Shared parameters (e.g. palette, cell_type, cluster_columns) apply to both sides but can be overridden per-side via the ... argument. Every parameter listed below can also be passed with a left_ or right_ prefix in ... for full per-side control.

The ... argument is also forwarded to Heatmap after prefix-stripping, allowing direct access to ComplexHeatmap parameters (e.g. left_row_names_gp, right_column_names_rot).

Split-by support

When split_by is provided, the data is partitioned into subsets and an independent linked-heatmap pair is produced for each level. The results are combined via wrap_plots according to nrow, ncol, byrow, and design. Per-split palette, palcolor, and legend.position can be specified as named lists keyed by split level.

Dimension calculation

Cell dimensions are pre-computed from cell_type, aspect.ratio, base_size, and the unique row/column counts in the data (accounting for split groups). These exact dimensions are passed to ComplexHeatmap::Heatmap so cells have guaranteed physical sizes, ensuring that the two heatmaps' bodies align precisely and that link line endpoints land on the correct rows. The final height / width attributes on the returned object include legend space and are clamped to \([4, 64]\) inches with aspect-ratio correction.

See also

Heatmap

Examples

# \donttest{
set.seed(8525)
# Define sparse ligand-receptor pairs
pairs_df <- data.frame(
    ligand = c("Ligand1", "Ligand2", "Ligand3", "Ligand4", "Ligand5",
               "Ligand1", "Ligand3", "Ligand5"),
    receptor = c("Receptor1", "Receptor2", "Receptor1", "Receptor3", "Receptor4",
                 "Receptor5", "Receptor2", "Receptor5"),
    stringsAsFactors = FALSE
)
sources <- paste0("Source", 1:4)
targets <- paste0("Target", 1:6)

# Expand pairs across all sources and targets
data <- merge(
    merge(pairs_df, data.frame(source = sources, stringsAsFactors = FALSE)),
    data.frame(target = targets, stringsAsFactors = FALSE)
)
data$split <- sample(c("A", "B"), nrow(data), replace = TRUE)
data$ligand_expr <- runif(nrow(data), 0, 10)
data$receptor_expr <- runif(nrow(data), 0, 10)
data$intensity <- runif(nrow(data), 0, 1)

if (requireNamespace("ComplexHeatmap", quietly = TRUE)) {
    LinkedHeatmap(
        data,
        column_names_side = "top",
        row_names_side = "right",
        right_cluster_rows = FALSE,
        left_show_row_names = TRUE,
        right_show_row_names = TRUE,
        left_row_names_side = "right",
        left_rows_by = "ligand",
        left_columns_by = "source",
        left_values_by = "ligand_expr",
        left_name = "Ligand",
        right_rows_by = "receptor",
        right_columns_by = "target",
        right_values_by = "receptor_expr",
        right_name = "Receptor",
        link_width_by = "intensity"
    )
}

# }
