Volcano plot

Source: R/volcanoplot.R
VolcanoPlot.Rd

Produces a volcano plot — a scatter plot that displays statistical significance (typically -log10 adjusted p-value) on the y-axis versus magnitude of change (log2 fold change) on the x-axis. Points are coloured automatically by significance category ("sig_pos_x", "sig_neg_x", "insig") or by a user-supplied column. The most significant features can be labelled automatically via geom_text_repel(), and specific points can be highlighted.

The function supports automatic labelling of top features (by distance to origin), mirrored layout via flip_negatives, x-axis trimming to reduce the influence of extreme values, faceting, and splitting into separate sub-plots via split_by with per-split colour palette and legend control.

Usage

VolcanoPlot(
  data,
  x,
  y,
  ytrans = function(n) -log10(n),
  color_by = NULL,
  color_name = NULL,
  xlim = NULL,
  flip_negatives = FALSE,
  x_cutoff = NULL,
  y_cutoff = 0.05,
  split_by = NULL,
  split_by_sep = "_",
  label_by = NULL,
  x_cutoff_name = NULL,
  y_cutoff_name = NULL,
  x_cutoff_color = "red2",
  y_cutoff_color = "blue2",
  x_cutoff_linetype = "dashed",
  y_cutoff_linetype = "dashed",
  x_cutoff_linewidth = 0.5,
  y_cutoff_linewidth = 0.5,
  pt_size = 2,
  pt_alpha = 0.5,
  nlabel = 5,
  labels = NULL,
  label_size = 3,
  label_fg = "black",
  label_bg = "white",
  label_bg_r = 0.1,
  highlight = NULL,
  highlight_color = "red",
  highlight_size = 2,
  highlight_alpha = 1,
  highlight_stroke = 0.5,
  trim = c(0, 1),
  facet_by = NULL,
  facet_scales = "fixed",
  facet_ncol = NULL,
  facet_nrow = NULL,
  facet_byrow = TRUE,
  theme = "theme_this",
  theme_args = list(),
  palette = "Spectral",
  palcolor = NULL,
  palreverse = FALSE,
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  aspect.ratio = 1,
  legend.position = "right",
  legend.direction = "vertical",
  seed = 8525,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data

A data frame.

x

A character string specifying the column name of the data frame to plot for the x-axis.

y

A character string specifying the column name of the data frame to plot for the y-axis.

ytrans

A function to transform the y-axis values before plotting. The default function(n) -log10(n) converts p-values to a -log10 scale. The transformed values are used for both the y-axis and cutoff comparisons.

color_by

A character string specifying the column name to colour the points by. When NULL (default), points are automatically categorised as "sig_pos_x", "sig_neg_x", or "insig" based on x_cutoff and y_cutoff, and the colour legend is suppressed. When a column name is provided, the colour mapping follows the column type — discrete (character/factor) uses scale_color_manual() with the specified palette; numeric (continuous) uses scale_color_gradientn().

color_name

A character string for the colour legend title when color_by is a numeric column. When NULL (default), the color_by column name is used.

xlim

A numeric vector of length 2 to set the x-axis limits. Passed to xlim(). When NULL (default), limits are determined automatically from the data.

flip_negatives

A logical value. When TRUE, y-values of points with negative x-values are multiplied by -1, creating a mirrored volcano plot where both up- and down-regulated features show their significance on the same side of the y-axis. A horizontal line at y = 0 and absolute-value axis labels are added. Default: FALSE.

x_cutoff

A numeric value specifying the x-axis significance cutoff. Both the negative and positive of this value are used as vertical threshold lines. When NULL or 0, no x-cutoff line is drawn. Default: NULL.

y_cutoff

A numeric value specifying the y-axis significance cutoff in the original (untransformed) scale. The value is transformed by ytrans before plotting. When NULL, no y-cutoff line is drawn and the category assignment uses only the x-cutoff. Default: 0.05.

split_by

The column(s) to split the data by and produce separate sub-plots. Multiple columns are concatenated with split_by_sep.

split_by_sep

A character string to separate concatenated split_by columns. Default "_".

label_by

A character string specifying the column whose values are used as label text. When NULL (default), row names of the data frame are used.

x_cutoff_name

A character string for the x-cutoff legend entry. When "none", the legend for the x-cutoff line is suppressed entirely (the line is still drawn). When NULL (default), a label of the form "<x> = +/-<value>" is generated.

y_cutoff_name

A character string for the y-cutoff legend entry. When "none", the legend for the y-cutoff line is suppressed entirely (the line is still drawn). When NULL (default), a label of the form "<ylab> = <value>" is generated.

x_cutoff_color

A character string specifying the colour of the x-axis cutoff line(s). Default: "red2".

y_cutoff_color

A character string specifying the colour of the y-axis cutoff line(s). Default: "blue2".

x_cutoff_linetype

A character string specifying the linetype of the x-axis cutoff line(s). Default: "dashed".

y_cutoff_linetype

A character string specifying the linetype of the y-axis cutoff line(s). Default: "dashed".

x_cutoff_linewidth

A numeric value specifying the linewidth of the x-axis cutoff line(s). Default: 0.5.

y_cutoff_linewidth

A numeric value specifying the linewidth of the y-axis cutoff line(s). Default: 0.5.

pt_size

A numeric value specifying the point size for all data points. Default: 2.

pt_alpha

A numeric value in [0, 1] specifying the transparency of all data points. Default: 0.5.

nlabel

An integer specifying the number of top features to label automatically. Points are ranked by Euclidean distance to the origin within each sign(x) group (and per facet level if facet_by is set). Only non-insignificant points receive labels. Default: 5.

labels

A character vector of row names or integer indices specifying which points to label. Overrides automatic nlabel selection. When NULL (default), top nlabel points are chosen automatically.

label_size

A numeric value specifying the font size of the labels. Default: 3.

label_fg

A character string specifying the text colour of the labels. Default: "black".

label_bg

A character string specifying the background colour of the label boxes (passed to geom_text_repel(bg.color = ...)). Default: "white".

label_bg_r

A numeric value specifying the corner radius of the label background boxes (passed to geom_text_repel(bg.r = ...)). Default: 0.1.

highlight

A character vector of row names or integer indices specifying which points to highlight with an overlaid point layer in highlight_color. When NULL (default), no highlighting is applied.

highlight_color

A character string specifying the colour of the highlight points. Default: "red".

highlight_size

A numeric value specifying the point size of the highlight layer. Default: 2.

highlight_alpha

A numeric value in [0, 1] specifying the transparency of the highlight points. Default: 1.

highlight_stroke

A numeric value specifying the stroke width of the highlight point borders. Default: 0.5.

trim

A numeric vector of length 2 specifying quantile bounds for winsorizing the x-axis values. Values below the first quantile are clamped to that quantile; values above the second quantile are clamped to that quantile. Both values must be in [0, 1]. When both bounds are nonzero and of opposite sign, they are symmetrised to the smaller absolute value. Default: c(0, 1) (no trimming).

facet_by

A character string specifying the column name of the data frame to facet the plot. Otherwise, the data will be split by split_by and generate multiple plots and combine them into one using patchwork::wrap_plots

facet_scales

Whether to scale the axes of facets. Default is "fixed" Other options are "free", "free_x", "free_y". See ggplot2::facet_wrap

facet_ncol

A numeric value specifying the number of columns in the facet. When facet_by is a single column and facet_wrap is used.

facet_nrow

A numeric value specifying the number of rows in the facet. When facet_by is a single column and facet_wrap is used.

facet_byrow

A logical value indicating whether to fill the plots by row. Default is TRUE.

theme

A character string or a theme class (i.e. ggplot2::theme_classic) specifying the theme to use. Default is "theme_this".

theme_args

A list of arguments to pass to the theme function.

palette

A character string specifying the palette to use. A named list or vector can be used to specify the palettes for different split_by values.

palcolor

A character string specifying the color to use in the palette. A named list can be used to specify the colors for different split_by values. If some values are missing, the values from the palette will be used (palcolor will be NULL for those values).

palreverse

A logical value indicating whether to reverse the palette. Default is FALSE.

title

A character string specifying the title of the plot. A function can be used to generate the title based on the default title. This is useful when split_by is used and the title needs to be dynamic.

subtitle

A character string specifying the subtitle of the plot.

xlab

A character string specifying the x-axis label.

ylab

A character string specifying the y-axis label.

aspect.ratio

A numeric value specifying the aspect ratio of the plot.

legend.position

A character string specifying the position of the legend. if waiver(), for single groups, the legend will be "none", otherwise "right".

legend.direction

A character string specifying the direction of the legend.

seed

The random seed to use. Default is 8525.

combine

Logical; when TRUE (default), returns a combined patchwork object. When FALSE, returns a named list of individual ggplot objects.

ncol, nrow

Integer number of columns / rows for the combined layout (passed to wrap_plots).

byrow

Logical; fill the combined layout by row. Default TRUE (passed to wrap_plots).

axes

A character string specifying how axes should be treated across the combined layout (passed to wrap_plots).

axis_titles

A character string specifying how axis titles should be treated across the combined layout. Defaults to axes.

guides

A character string specifying how guides (legends) should be collected across panels. Default "collect" (passed to combine_plots()).

design

A custom layout design for the combined plot (passed to combine_plots()).

...

Additional arguments.

Value

A ggplot object, a patchwork object, or a named list of ggplot objects (when combine = FALSE), each with height and width attributes in inches.

split_by Workflow

When split_by is provided:

  1. The split_by column(s) are validated via check_columns() with force_factor = TRUE and concat_multi = TRUE (multiple columns are concatenated with split_by_sep).

  2. The data frame is split by split_by (preserving factor level order). If split_by is NULL, the data is wrapped in a single-element list with name "...".

  3. Per-split palette, palcolor, legend.position, and legend.direction are resolved via check_palette(), check_palcolor(), and check_legend().

  4. VolcanoPlotAtomic() is called for each split. If title is a function, it receives the split level name and can generate dynamic titles.

  5. Results are combined via combine_plots() (when combine = TRUE) or returned as a named list.

Examples

# \donttest{
set.seed(8525)
# Obtained by Seurat::FindMakers for the first cluster of pbmc_small
data <- data.frame(
   avg_log2FC = c(
     -3.69, -4.10, -2.68, -3.51, -3.09, -2.52, -3.53, -3.35, -2.82, -2.71, -3.16, -2.24,
     -5.62, -3.10, -3.42, -2.72, -3.23, -3.25, -4.68, 3.67, -2.66, 4.79, -2.99, 10.14,
     -1.78, -2.67, -2.26, -2.59, -3.39, 5.36, 4.56, 4.62, -2.94, -9.47, -9.12, -1.63,
     -2.77, 3.31, -1.53, -3.89, -4.21, 4.72, -2.98, -2.29, -1.41, -9.48, -4.30, 3.01,
     -1.19, -4.83, -1.35, -1.68, -1.63, -2.70, 3.86, 3.81, 7.23, -1.45, -0.92, -2.45,
     3.91, -4.45, -9.33, 3.56, 2.27, -1.60, -1.15, 11.40, -9.77, -8.32, 2.61, -1.25,
     -1.72, 10.61, 11.34, 10.02, 2.78, -3.48, -1.98, 5.86, 5.57, 4.57, 9.75, 9.97,
     10.90, 9.19, 2.93, 5.10, -1.52, -3.93, -1.95, -2.46, -0.64, 4.60, -1.82, -0.80,
     9.34, 7.51, 6.45, 5.23, 4.41, 3.60, -1.94, -1.15),
   p_val_adj = c(
     3.82e-09, 1.52e-07, 1.79e-07, 4.68e-07, 4.83e-07, 6.26e-07, 2.61e-06, 1.33e-05,
     1.79e-05, 3.71e-05, 5.21e-05, 5.36e-05, 5.83e-05, 6.66e-05, 8.22e-05, 2.89e-04,
     3.00e-04, 4.94e-04, 7.62e-04, 8.93e-04, 9.55e-04, 9.61e-04, 1.12e-03, 1.47e-03,
     1.66e-03, 1.95e-03, 2.06e-03, 3.01e-03, 3.26e-03, 4.35e-03, 4.85e-03, 5.12e-03,
     5.40e-03, 7.18e-03, 7.18e-03, 1.04e-02, 1.24e-02, 1.90e-02, 1.94e-02, 1.97e-02,
     2.09e-02, 2.13e-02, 2.25e-02, 2.61e-02, 3.18e-02, 3.27e-02, 3.69e-02, 3.80e-02,
     4.95e-02, 5.73e-02, 5.77e-02, 6.10e-02, 6.22e-02, 6.31e-02, 6.72e-02, 9.23e-02,
     9.85e-02, 1.06e-01, 1.07e-01, 1.11e-01, 1.31e-01, 1.38e-01, 1.40e-01, 1.43e-01,
     2.00e-01, 2.39e-01, 2.49e-01, 2.57e-01, 2.86e-01, 2.86e-01, 2.98e-01, 3.32e-01,
     4.15e-01, 4.91e-01, 4.91e-01, 4.91e-01, 5.97e-01, 7.11e-01, 7.59e-01, 8.38e-01,
     9.20e-01, 9.20e-01, 9.29e-01, 9.29e-01, 9.29e-01, 9.29e-01, 9.34e-01, 9.68e-01,
     1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00,
     1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00, 1.00e+00),
   gene = c(
     "HLA-DPB1", "LYZ", "HLA-DRA", "TYMP", "HLA-DPA1", "HLA-DRB1", "CST3", "HLA-DQB1",
     "HLA-DRB5", "LST1", "HLA-DQA1", "AIF1", "S100A8", "IFITM3", "HLA-DMB", "FCGRT",
     "SERPINA1", "IFI30", "S100A9", "CCL5", "GRN", "LCK", "HLA-DMA", "MS4A6A", "CTSS",
     "CFP", "FCN1", "BID", "CFD", "CD3D", "CD7", "CD3E", "LGALS2", "CD14", "SMCO4",
     "LINC00936", "HCK", "CTSW", "LGALS1", "HLA-DQA2", "LRRC25", "GZMM", "RNF130",
     "LGALS3", "S100A11", "C5AR1", "IL1B", "GZMA", "FCER1G", "MPEG1", "TYROBP", "TSPO",
     "GSTP1", "CTSB", "IL32", "CD247", "GNLY", "COTL1", "NFKBIA", "NUP214", "LAMP1",
     "FPR1", "CLEC10A", "CST7", "PRF1", "BLVRA", "PSAP", "GZMH", "EAF2", "ASGR1",
     "RARRES3", "SAT1", "LY86", "GP9", "TUBB1", "NGFRAP1", "XBP1", "SCO2", "RGS2", "GZMB",
     "HIST1H2AC", "KLRD1", "PGRMC1", "AKR1C3", "PTGDR", "IL2RB", "GYPC", "CCL4", "CD68",
     "FCER1A", "CD79B", "MS4A7", "CARD16", "ACAP1", "CD79A", "ANXA2", "TMEM40", "PF4",
     "GNG11", "CLU", "CD9", "FGFBP2", "TNFRSF1B", "IFI6"),
  pct_diff = c(
     -0.752, -0.457, -0.460, -0.671, -0.626, -0.701, -0.502, -0.619, -0.623, -0.598,
     -0.566, -0.626, -0.543, -0.566, -0.541, -0.542, -0.515, -0.489, -0.444, 0.428,
     -0.517, 0.461, -0.491, -0.410, -0.480, -0.491, -0.521, -0.491, -0.438, 0.411,
     0.411, 0.409, -0.438, -0.359, -0.359, -0.440, -0.386, 0.385, -0.332, -0.361, -0.361,
     0.364, -0.387, -0.415, -0.454, -0.308, -0.335, 0.364, -0.454, -0.309, -0.379, -0.427,
     -0.377, -0.389, 0.335, 0.315, 0.313, -0.284, -0.502, -0.309, 0.313, -0.284, -0.256,
     0.309, 0.313, -0.364, -0.406, 0.244, -0.231, -0.231, 0.281, -0.311, -0.312, 0.220,
     0.220, 0.220, 0.261, -0.232, -0.367, 0.240, 0.218, 0.218, 0.195, 0.195, 0.195, 0.195,
     0.262, 0.218, -0.288, -0.207, -0.290, -0.233, -0.367, 0.217, -0.233, -0.403, 0.171,
     0.194, 0.194, 0.194, 0.194, 0.213, -0.235, -0.292),
  group = sample(LETTERS[1:2], 104, replace = TRUE)
)
# If set, it will be used as labels if label_by is not set.
# rownames(data) <- data$gene

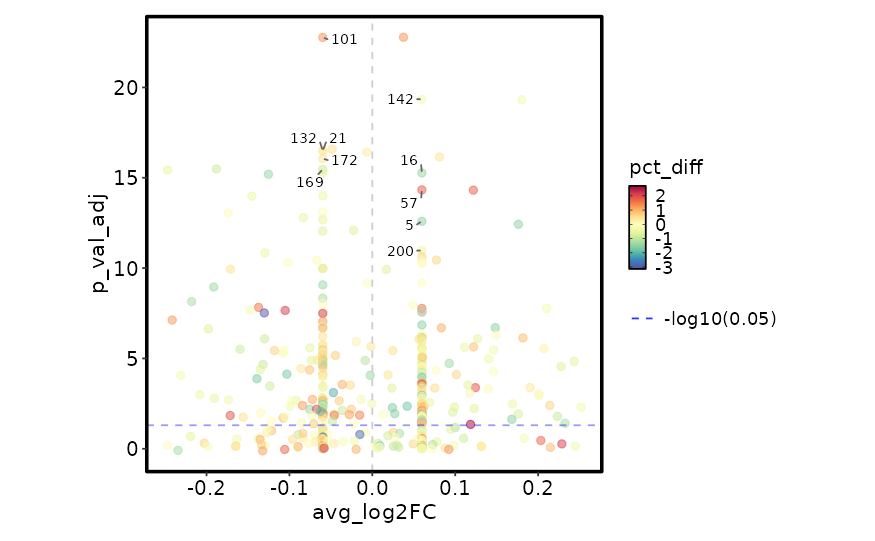

# --- Basic usage ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", color_by = "pct_diff",
   y_cutoff_name = "-log10(0.05)")

# --- With gene labels ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", color_by = "pct_diff",
   y_cutoff_name = "-log10(0.05)", label_by = "gene")

# --- Mirrored layout ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", y_cutoff_name = "none",
   flip_negatives = TRUE, label_by = "gene")

# --- With faceting ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", y_cutoff_name = "none",
   flip_negatives = TRUE, facet_by = "group", label_by = "gene")

# --- With splitting ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", y_cutoff_name = "none",
   flip_negatives = TRUE, split_by = "group", label_by = "gene")

# --- With highlighting ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", y_cutoff_name = "none",
   highlight = c("ANXA2", "TMEM40", "PF4", "GNG11", "CLU", "CD9", "FGFBP2",
   "TNFRSF1B", "IFI6"), label_by = "gene")

# --- Per-split palettes ---
VolcanoPlot(data, x = "avg_log2FC", y = "p_val_adj", color_by = "pct_diff",
   y_cutoff_name = "-log10(0.05)", split_by = "group", label_by = "gene",
   palette = c(A = "Set1", B = "Dark2"))

# }
