Ring plot (multi-layer donut chart)

Draws a ring plot (multi-layer donut chart) where each level of x becomes a concentric ring divided into filled segments by group_by. The plot is built with geom_col() under coord_polar("y"), producing a publication-quality ring chart with automatic count aggregation, per-group colour assignment, faceting, and splitting into sub-plots.

When x = NULL, a single-ring plot is produced (functionally equivalent to a pie chart via PieChart).

Usage

RingPlot(
  data,
  x = NULL,
  y = NULL,
  group_by = NULL,
  group_by_sep = "_",
  group_name = NULL,
  label = NULL,
  split_by = NULL,
  split_by_sep = "_",
  facet_by = NULL,
  facet_scales = "free_y",
  facet_ncol = NULL,
  facet_nrow = NULL,
  facet_byrow = TRUE,
  theme = "theme_this",
  theme_args = list(),
  palette = "Paired",
  palcolor = NULL,
  palreverse = FALSE,
  alpha = 1,
  aspect.ratio = 1,
  keep_na = FALSE,
  keep_empty = FALSE,
  legend.position = "right",
  legend.direction = "vertical",
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data

A data frame.

x

A character string specifying the column name of the data frame to plot for the x-axis.

y

A character string specifying the column name of the data frame to plot for the y-axis.

group_by

Columns to group the data for plotting For those plotting functions that do not support multiple groups, They will be concatenated into one column, using group_by_sep as the separator

group_by_sep

The separator for multiple group_by columns. See group_by

group_name

A character string used as the fill legend title. When NULL, the group_by column name is used.

label

A logical value controlling whether ring labels are shown. Labels display the x values (ring names) at the inner edge of each ring. Default NULL auto-selects: FALSE for single-ring plots, TRUE for multi-ring plots.

split_by

The column(s) to split the data by and produce separate sub-plots. Multiple columns are concatenated with split_by_sep.

split_by_sep

A character string to separate concatenated split_by columns. Default "_".

facet_by

A character string specifying the column name of the data frame to facet the plot. Otherwise, the data will be split by split_by and generate multiple plots and combine them into one using patchwork::wrap_plots

facet_scales

Whether to scale the axes of facets. Default is "fixed" Other options are "free", "free_x", "free_y". See ggplot2::facet_wrap

facet_ncol

A numeric value specifying the number of columns in the facet. When facet_by is a single column and facet_wrap is used.

facet_nrow

A numeric value specifying the number of rows in the facet. When facet_by is a single column and facet_wrap is used.

facet_byrow

A logical value indicating whether to fill the plots by row. Default is TRUE.

theme

A character string or a theme class (i.e. ggplot2::theme_classic) specifying the theme to use. Default is "theme_this".

theme_args

A list of arguments to pass to the theme function.

palette

A character string specifying the palette to use. A named list or vector can be used to specify the palettes for different split_by values.

palcolor

A character string specifying the color to use in the palette. A named list can be used to specify the colors for different split_by values. If some values are missing, the values from the palette will be used (palcolor will be NULL for those values).

palreverse

A logical value indicating whether to reverse the palette. Default is FALSE.

alpha

A numeric value specifying the transparency of the plot.

aspect.ratio

A numeric value specifying the aspect ratio of the plot.

keep_na

A logical value or a character to replace the NA values in the data. It can also take a named list to specify different behavior for different columns. If TRUE or NA, NA values will be replaced with NA. If FALSE, NA values will be removed from the data before plotting. If a character string is provided, NA values will be replaced with the provided string. If a named vector/list is provided, the names should be the column names to apply the behavior to, and the values should be one of TRUE, FALSE, or a character string. Without a named vector/list, the behavior applies to categorical/character columns used on the plot, for example, the x, group_by, fill_by, etc.

keep_empty

One of FALSE, TRUE and "level". It can also take a named list to specify different behavior for different columns. Without a named list, the behavior applies to the categorical/character columns used on the plot, for example, the x, group_by, fill_by, etc.

FALSE (default): Drop empty factor levels from the data before plotting.
TRUE: Keep empty factor levels and show them as a separate category in the plot.
"level": Keep empty factor levels, but do not show them in the plot. But they will be assigned colors from the palette to maintain consistency across multiple plots. Alias: levels

legend.position

A character string specifying the position of the legend. if waiver(), for single groups, the legend will be "none", otherwise "right".

legend.direction

A character string specifying the direction of the legend.

title

A character string specifying the title of the plot. A function can be used to generate the title based on the default title. This is useful when split_by is used and the title needs to be dynamic.

subtitle

A character string specifying the subtitle of the plot.

xlab

A character string specifying the x-axis label.

ylab

A character string specifying the y-axis label.

combine

Logical; when TRUE (default), returns a combined patchwork object. When FALSE, returns a named list of individual ggplot objects.

ncol, nrow

Integer number of columns / rows for the combined layout (passed to wrap_plots).

byrow

Logical; fill the combined layout by row. Default TRUE (passed to wrap_plots).

seed

A numeric seed for reproducibility. Passed to validate_common_args().

axes

A character string specifying how axes should be treated across the combined layout (passed to wrap_plots).

axis_titles

A character string specifying how axis titles should be treated across the combined layout. Defaults to axes.

guides

A character string specifying how guides (legends) should be collected across panels. Default "collect" (passed to combine_plots()).

design

A custom layout design for the combined plot (passed to combine_plots()).

...

Additional arguments.

Value

A ggplot object, a patchwork object, or a named list of ggplot objects (when combine = FALSE), each with height and width attributes in inches.

split_by workflow

When split_by is provided:

check_keep_na() and check_keep_empty() normalise the keep_na / keep_empty arguments for all columns (x, group_by, split_by, facet_by).
The split_by column is validated and its NA / empty levels are processed via process_keep_na_empty(). It is then removed from the per-column keep_na / keep_empty lists.
The data frame is split by split_by (preserving level order). If split_by is NULL, the data is wrapped in a single-element list with name "...".
Per-split palette, palcolor, legend.position, and legend.direction are resolved via check_palette(), check_palcolor(), and check_legend().
RingPlotAtomic() is called for each split. If title is a function, it receives the split level name and can generate dynamic titles.
Results are combined via combine_plots() (when combine = TRUE) or returned as a named list.

Examples

# \donttest{
# Basic single-ring plot (pie-chart-like)
RingPlot(datasets::iris, group_by = "Species")


# Multi-ring plot with faceting
RingPlot(datasets::mtcars, x = "cyl", group_by = "carb", facet_by = "vs")


# Split into sub-plots with per-split palettes
RingPlot(datasets::mtcars, x = "cyl", group_by = "carb", split_by = "vs",
        palette = c("0" = "Set1", "1" = "Paired"))


# Custom data with NA and empty levels
data <- data.frame(
  x = factor(c("A", "B", NA, "D", "A", "B", NA, "D"), levels = c("A", "B", "C", "D")),
  y = c(1, 2, 5, 3, 4, 5, 2, 6),
  group = factor(c("a", "a", "a", NA, NA, "c", "c", "c"), levels = c("a", "b", "c"))
)

# Default: NA and empty levels dropped

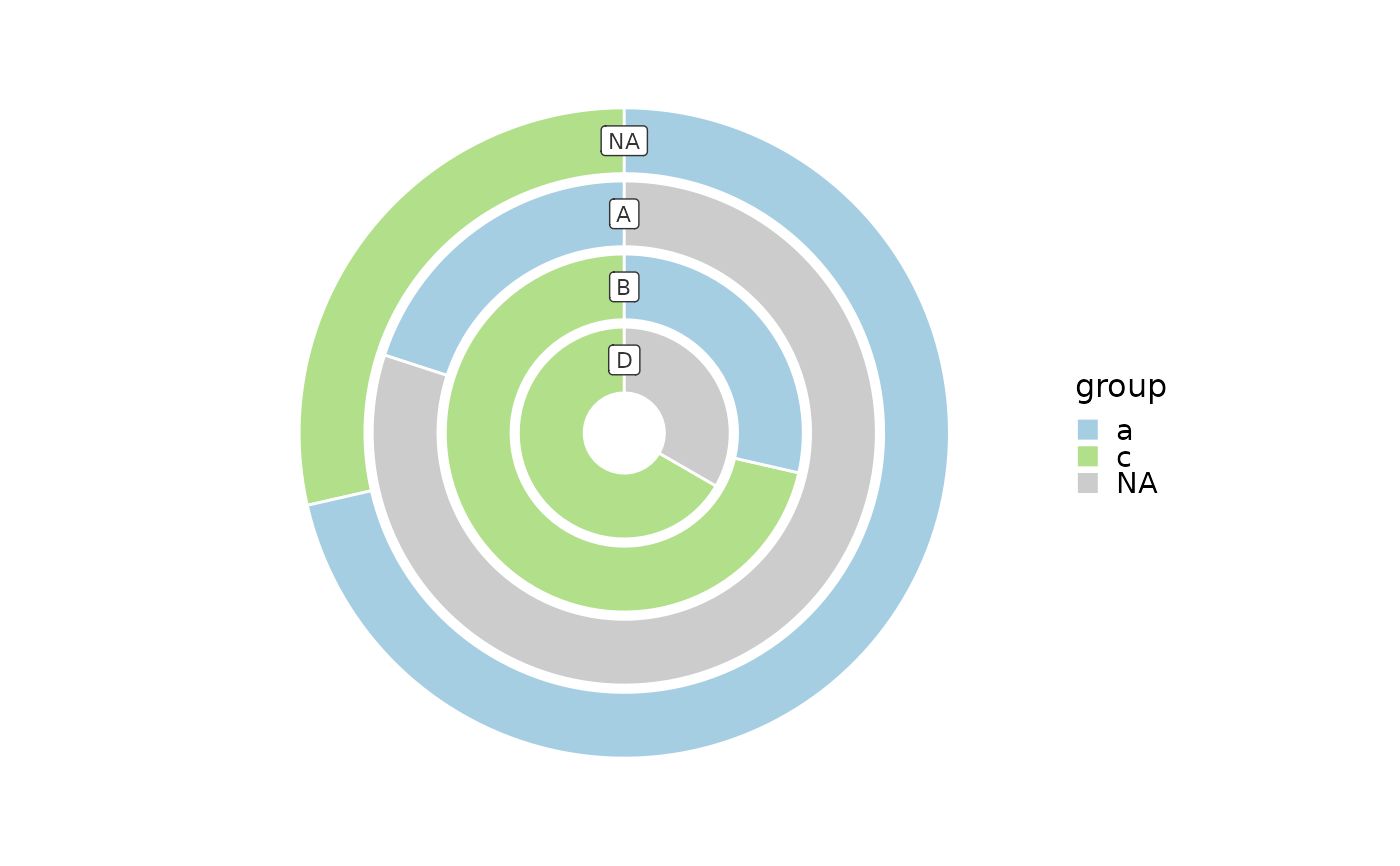

RingPlot(data, x = "x", y = "y", group_by = "group")


# Keep NA and empty levels

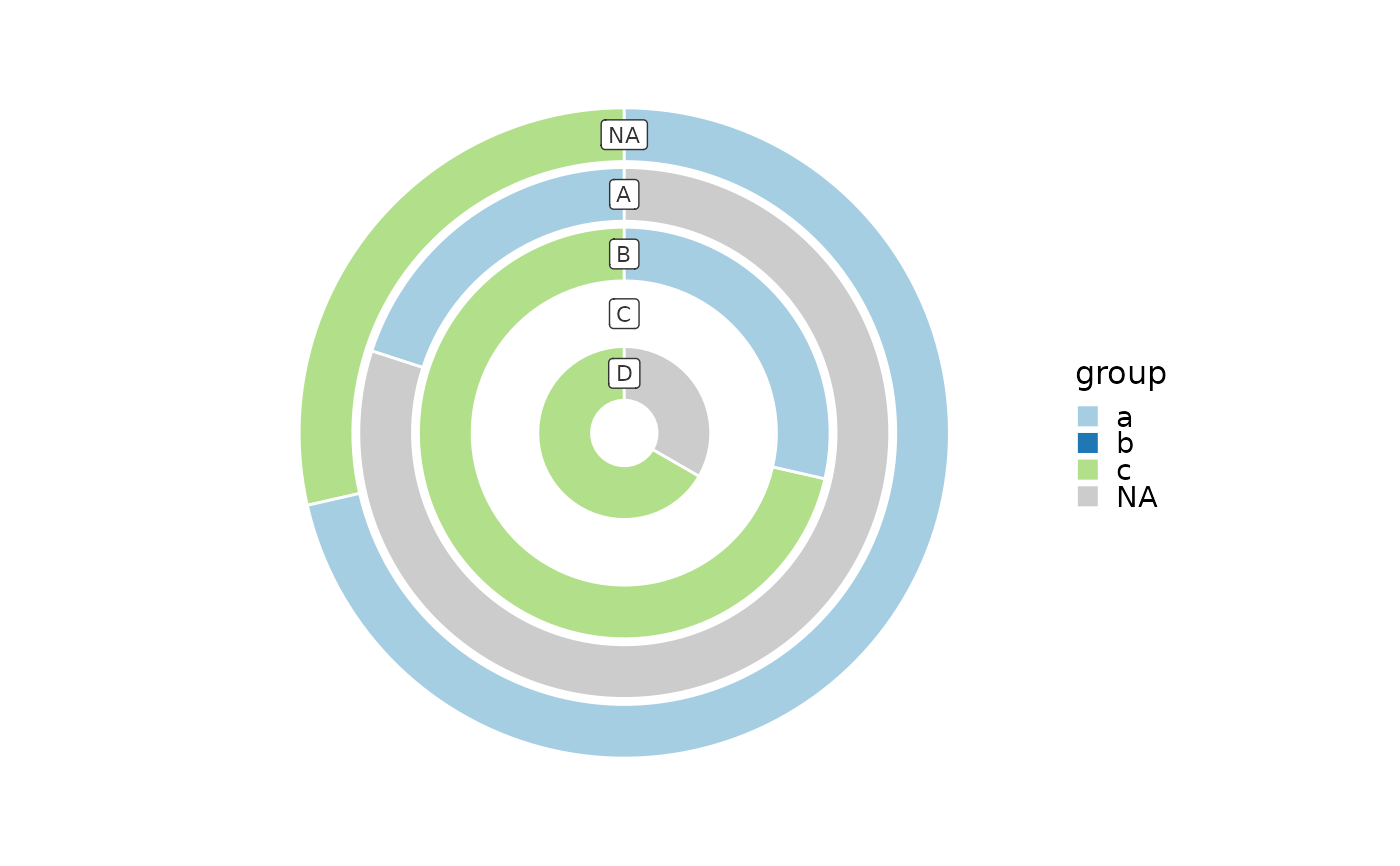

RingPlot(data, x = "x", y = "y", group_by = "group",
        keep_na = TRUE, keep_empty = TRUE)


# Per-column keep_na / keep_empty via named lists
RingPlot(data, x = "x", y = "y", group_by = "group",
        keep_na = TRUE, keep_empty = list(x = FALSE, group = 'level'))

# }

Usage
