Running the pipeline

Run the pipeline locally via CLI

Once the pipeline is installed, you can run it via CLI:

$ immunopipe --help

You can specify the options directly in the CLI. For example:

$ immunopipe --forks 4 --TopExpressingGenes.envs.n 100 ...

It's recommended to use a configuration file to specify all the options. For example:

$ immunopipe @config.toml

You can also use both ways together. The options specified in the CLI will override the ones in the configuration file.

$ immunopipe @config.toml --forks 4 --TopExpressingGenes.envs.n 100 ...

For configuration items, see configurations for more details.

Tip

If you want to run the pipeline on a cluster, see How to run the pipeline on a cluster? for more details.

Attention

For settings that determine the routes of the pipeline, you should define them in the configuration file. For example, if you want to perform supervised clustering, you need to add [SeuratMap2Ref] in the configuration file with necessary parameters. If you just pass the section as a command line argument (--SeuratMap2Ref), it will not trigger the corresponding processes.

To indicator whether the scTCR-/scBCR-seq data is available or not, you also need to specify the sample information file in the configuration file [SampleInfo.in.infile]. Passing the sample information file as a command line argument (--Sample.in.infile) does not trigger the corresponding processes.

See Routes of the pipeline for more details.

Run the pipeline via pipen-board

pipen-board is a web-based dashboard for pipen. It provides a user-friendly interface to configure and run the pipeline. It also provides a way to monitor the running progress of the pipeline.

pipen-board is installed by default with immunopipe. You can run it via CLI:

$ pipen board immunopipe:Immunopipe
 *
 *        __   __  __.  .     __  __   +  __  __
 *       |__)||__)|_ |\ | __ |__)/  \ /\ |__)|  \
 *       |   ||   |__| \|    |__)\__//--\| \ |__/
 *
 *                   version: 0.11.1
 *
 * Configure and run pipen pipelines from the web
 *
 * Serving Quart app 'pipen_board'
 * Environment: development
 * Debug mode: True
 * Running on http://0.0.0.0:18521 (CTRL + C to quit)
[07/31/23 21:23:27] INFO     Running on http://0.0.0.0:18521 (CTRL + C to quit)

Then you can open the dashboard in your browser at http://localhost:18521.

pipen-board

In the Configuration tab, you can configure the pipeline and the processes. Then you can use the Generate Configuration button to generate the configuration file and then use the generated configuration file to run the pipeline via CLI.

If you want to run the pipeline via pipen-board, you need an additional configuration file to tell pipen-board how to run the pipeline:

$ pipen board immunopipe:Immunopipe -a gh:pwwang/immunopipe/board.toml@dev

The additional file is available at immunopipe's GitHub repo. You can also download it and modify it to fit your needs, but in most cases, you don't have to. With the additional file, you can find four running options, LOCAL, DOCKER, SINGULARITY and APPTAINER, on the left side of the Configuration tab. You can choose one of them to run the pipeline.

Take LOCAL as an example. When clicking the Run the command button, a configuration file specified by configfile is saved and used to run the pipeline via CLI. Then the Previous Run tab is replaced by the Running tab to track the progress of the pipeline.

Run the pipeline using docker image

Choose the right tag of the docker image

The docker image is tagged with the version of immunopipe, together with master and dev. They are listed here: https://hub.docker.com/repository/docker/justold/immunopipe/tags.

dev is the latest development version of immunopipe. It may have unstable features. If you want to use a more stable version, please try master, or a specific semantic version.

Any tags with a -full suffix are the full version of the image. It contains all the dependencies of the pipeline, especially keras and tensorflow that are required by the embedding procedure of TESSA. Those packages take quite a lot of the space of the image. If you don't need the TESSA process, you can use the minimal version of the image.

Any tags without the -full suffix are the minimal version of the image. TESSA process is also NOT supported in the minimal version. keras and tensorflow are also NOT included in the image.

Please also keep in mind that there is no GPU support with either type of the image.

You can pull the images in advance using docker, singularity or apptainer. See help options of docker pull, singularity pull or apptainer pull for more details.

You can also specify the tag when running the pipeline. See the following sections for more details.

To run the pipeline using the docker image with docker, you need to mount the current working directory to the /workdir directory in the container. You also need to specify the configuration file via @<configfile> option. For example:

$ docker run \
    --rm -w /workdir -v .:/workdir -v /tmp:/tmp \
    justold/immunopipe:<tag> \
    @config.toml

You also need to mount the current working directory to the /workdir directory in the container if you are using singularity. You also need to specify the configuration file via @<configfile> option. For example:

$ singularity run \
    --pwd /workdir -B .:/workdir,/tmp -c -e --writable-tmpfs \
    docker://justold/immunopipe:<tag> \
    @config.toml

You also need to mount the current working directory to the /workdir directory in the container if you are using apptainer. You also need to specify the configuration file via @<configfile> option. For example:

$ apptainer run \
    --pwd /workdir -B .:/workdir,/tmp -c -e --unsquash --writable-tmpfs \
    docker://justold/immunopipe:<tag> \
    @config.toml

Run the pipeline via pipen-board using docker image

You can also run the pipeline via pipen-board using the docker image with docker:

$ docker run -p 18521:18521 \
    --rm -w /workdir -v .:/workdir -v /tmp:/tmp \
    justold/immunopipe:<tag> board \
    immunopipe:Immunopipe \
    -a /immunopipe/board.toml

The under the running options, choose LOCAL to run the pipeline.

Note

You should use LOCAL instead of DOCKER to run the pipeline. Otherwise, the pipeline will be run in a docker container inside the docker container.

You can also run the pipeline via pipen-board using the docker image with singularity:

$ singularity run \
    --pwd /workdir -B .:/workdir,/tmp -c -e --writable-tmpfs \
    docker://justold/immunopipe:<tag> board \
    immunopipe:Immunopipe \
    -a /immunopipe/board.toml

The under the running options, choose LOCAL to run the pipeline.

Similarly, you should use LOCAL instead of SINGULARITY to run the pipeline. Otherwise, the pipeline will be run in a docker container inside the container.

You can also run the pipeline via pipen-board using the docker image with apptainer:

$ apptainer run \
    --pwd /workdir -B .:/workdir,/tmp -c -e --unsquash --writable-tmpfs \
    docker://justold/immunopipe:<tag> board \
    immunopipe:Immunopipe \
    -a /immunopipe/board.toml

Also similarly, you should use LOCAL instead of APPTAINER to run the pipeline. Otherwise, the pipeline will be run in a docker container inside the container.

When the command is running, you will see the following message:

singularity-pipen-board

Then, You can open the dashboard in your browser at http://localhost:18521.

Run the pipeline using Google Cloud Batch Jobs

There are two ways to run the pipeline using Google Cloud Batch Jobs:

Use the gbatch scheduler of pipen

When using the gbatch, the metadata of the processes (job status, job output, etc) are managed locally. Even though they are on the cloud, they are manipuated locally (using the API provided by cloudpathlib). The processes are submitted to Google Cloud Batch Jobs using gcloud batch jobs submit. And the processes are run on Google Cloud Compute Engine VMs, and they need to be sumbitted one after another.

See the documentation of cloud support of pipen.

Use pipen-cli-gbatch

You need install the dependencies via pip install -U immunopipe[cli-gbatch] to use this feature.

immunopipe has integrated with pipen-cli-gbatch to provide a seamless way to run the pipeline using Google Cloud Batch Jobs. The entire pipeline is wrapped (like it is running locally) and submitted as a single job to Google Cloud Batch Jobs. You just need to run the following:

> immunopipe gbatch @config.toml

To provide the scheduler options to run the wrapped job (daemon) on Google Cloud Batch Jobs, you can specify them by --cli-gbatch.machine-type, --cli-gbatch.provisioning-model, --cli-gbatch.disk-size-gb, etc. See the help message of immunopipe gbatch --help for more details.

> immunopipe gbatch --help

# pipeline options

Options For Pipen-cli-gbatch (extra Options):
  --cli-gbatch.profile PROFILE
                        Use the `scheduler_opts` as the Scheduler Options of a given profile from pipen configuration files,
                        including ~/.pipen.toml and ./pipen.toml.
                        Note that if not provided, nothing will be loaded from the configuration files.
  --cli-gbatch.loglevel {DEBUG,INFO,WARNING,ERROR,CRITICAL,debug,info,warning,error,critical}
                        Set the logging level for the daemon process. [default: INFO]
  --cli-gbatch.error-strategy {retry,halt}
                        The strategy when there is error happened [default: halt]
  --cli-gbatch.num-retries NUM_RETRIES
                        The number of retries when there is error happened. Only valid when --error-strategy is 'retry'. [default: 0]
  --cli-gbatch.prescript PRESCRIPT
                        The prescript to run before the main command.
  --cli-gbatch.postscript POSTSCRIPT
                        The postscript to run after the main command.
  --cli-gbatch.recheck-interval RECHECK_INTERVAL
                        The interval to recheck the job status, each takes about 0.1 seconds. [default: 600]
  --cli-gbatch.project PROJECT
                        The Google Cloud project to run the job.
  --cli-gbatch.location LOCATION
                        The location to run the job.
  --cli-gbatch.mount MOUNT
                        The list of mounts to mount to the VM, each in the format of SOURCE:TARGET, where SOURCE must be either a
                        Google Storage Bucket path (gs://...).
                        You can also use named mounts like `INDIR=gs://my-bucket/inputs` and the directory will be mounted to
                        `/mnt/disks/INDIR` in the VM;
                        then you can use environment variable `$INDIR` in the command/script to refer to the mounted path.
                        You can also mount a file like `INFILE=gs://my-bucket/inputs/file.txt`. The parent directory will be mounted
                        to `/mnt/disks/INFILE/inputs` in the VM,
                        and the file will be available at `/mnt/disks/INFILE/inputs/file.txt` in the VM. `$INFILE` can also be used
                        in the command/script to refer to the mounted path.
                        [default: []]
  --cli-gbatch.service-account SERVICE_ACCOUNT
                        The service account to run the job.
  --cli-gbatch.network NETWORK
                        The network to run the job.
  --cli-gbatch.subnetwork SUBNETWORK
                        The subnetwork to run the job.
  --cli-gbatch.no-external-ip-address
                        Whether to disable external IP address for the VM.
  --cli-gbatch.machine-type MACHINE_TYPE
                        The machine type of the VM.
  --cli-gbatch.provisioning-model {STANDARD,SPOT}
                        The provisioning model of the VM.
  --cli-gbatch.image-uri IMAGE_URI
                        The custom image URI of the VM.
  --cli-gbatch.runnables RUNNABLES
                        The JSON string of extra settings of runnables add to the job.json.
                        Refer to https://cloud.google.com/batch/docs/reference/rest/v1/projects.locations.jobs#Runnable for details.
                        You can have an extra key 'order' for each runnable, where negative values mean to run before the main
                        command,
                        and positive values mean to run after the main command.
  --cli-gbatch.allocationPolicy ALLOCATIONPOLICY
                        The JSON string of extra settings of allocationPolicy add to the job.json. Refer to
                        https://cloud.google.com/batch/docs/reference/rest/v1/projects.locations.jobs#AllocationPolicy for details.
                        [default: {}]
  --cli-gbatch.taskGroups TASKGROUPS
                        The JSON string of extra settings of taskGroups add to the job.json. Refer to
                        https://cloud.google.com/batch/docs/reference/rest/v1/projects.locations.jobs#TaskGroup for details.
                        [default: []]
  --cli-gbatch.labels LABELS
                        The strings of labels to add to the job (key=value). Refer to
                        https://cloud.google.com/batch/docs/reference/rest/v1/projects.locations.jobs#Job.FIELDS.labels for details.
                        [default: []]
  --cli-gbatch.gcloud GCLOUD
                        The path to the gcloud command. [default: gcloud]

When --cli-gbatch.profile is provided, the default scheduler options will be used from ~/.pipen.toml and ./pipen.toml. For example, you can add the following to ~/.pipen.toml:

[gbatch.scheduler_opts]
project = "my-project"
location = "us-central1"

Then you can run the pipeline using the following command:

> immunopipe gbatch @config.toml --cli-gbatch.profile gbatch

To use the default project and location.

You can also specify these options directly in the command line or under a section cli-gbatch in the configuration file. The options specified in the command line will override the ones in the configuration file, which will override the ones in the profile.

For example, you may have the following in config.toml:

name = "Immunopipe"
workdir = "gs://my-bucket/immunopipe_workdir"
outdir = "gs://my-bucket/immunopipe_outdir"

[cli-gbatch]
project = "my-project"
location = "us-central1"
machine-type = "n2d-standard-4"
provisioning-model = "SPOT"
...

There are other actions you can do with gbatch:

  • immunopipe gbatch @config.toml --nowait: submit the job and exit without waiting for the job to finish.
  • immunopipe gbatch @config.toml --view-logs: view the logs of the job for the detached job.
  • immunopipe gbatch @config.toml --version: show the version of immunopipe, pipen-cli-gbatch and pipen.

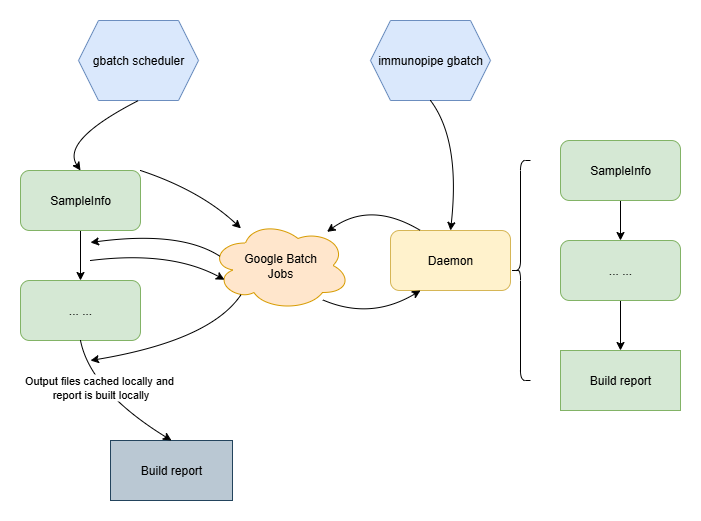

Here is a diagram showing the difference between using the gbatch scheduler and using pipen-cli-gbatch:

gbatch-vs-pipen-cli-gbatch

You can also run the pipeline using Google Cloud Batch Jobs directly. In this case, you need to create a job definition file and submit the job using gcloud batch jobs submit. The job definition file should specify the container image, the command to run the pipeline, and the resources required for the job.

Here is an example of a job definition file (job.json):

{
  "allocationPolicy": {
    "serviceAccount": {
      "email": "..."
    },
    "network": "...",
    "instances": [
      {
        "policy": {
          "machineType": "n2d-standard-4",
          "provisioningModel": "SPOT"
        }
      }
    ]
  },
  "taskGroups": [
    {
      "taskSpec": {
        "runnables": [
          {
            "container": {
              "image_uri": "docker.io/justold/immunopipe:dev",
              "entrypoint": "/usr/local/bin/_entrypoint.sh",
              "commands": [
                "immunopipe",
                "@/mnt/disks/workdir/Immunopipe.config.toml"
              ]
            }
          }
        ],
        "volumes": [
          {
            "gcs": {
              "remotePath": "<bucket>/path/to/workdir"
            },
            "mountPath": "/mnt/disks/workdir"
          }
        ]
      }
    }
  ],
  "logsPolicy": {
    "destination": "CLOUD_LOGGING"
  },
  "labels": "..."
}

Then you can submit the job using the following command:

$ gcloud batch jobs submit <job-name> --location <location> --project <project-id> --config job.json
